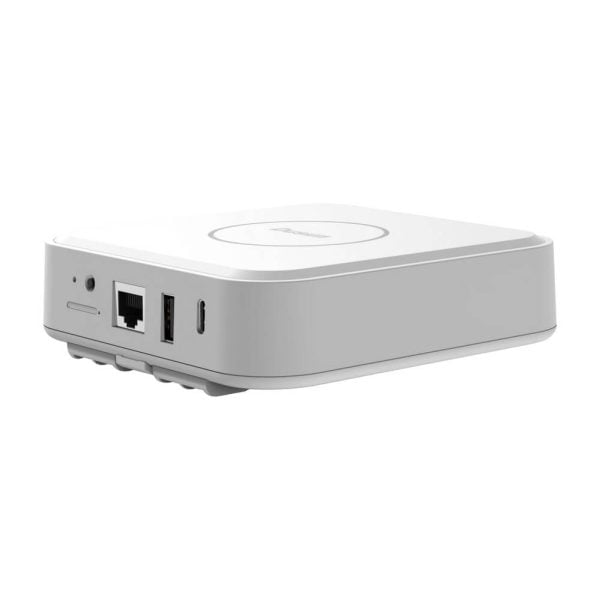

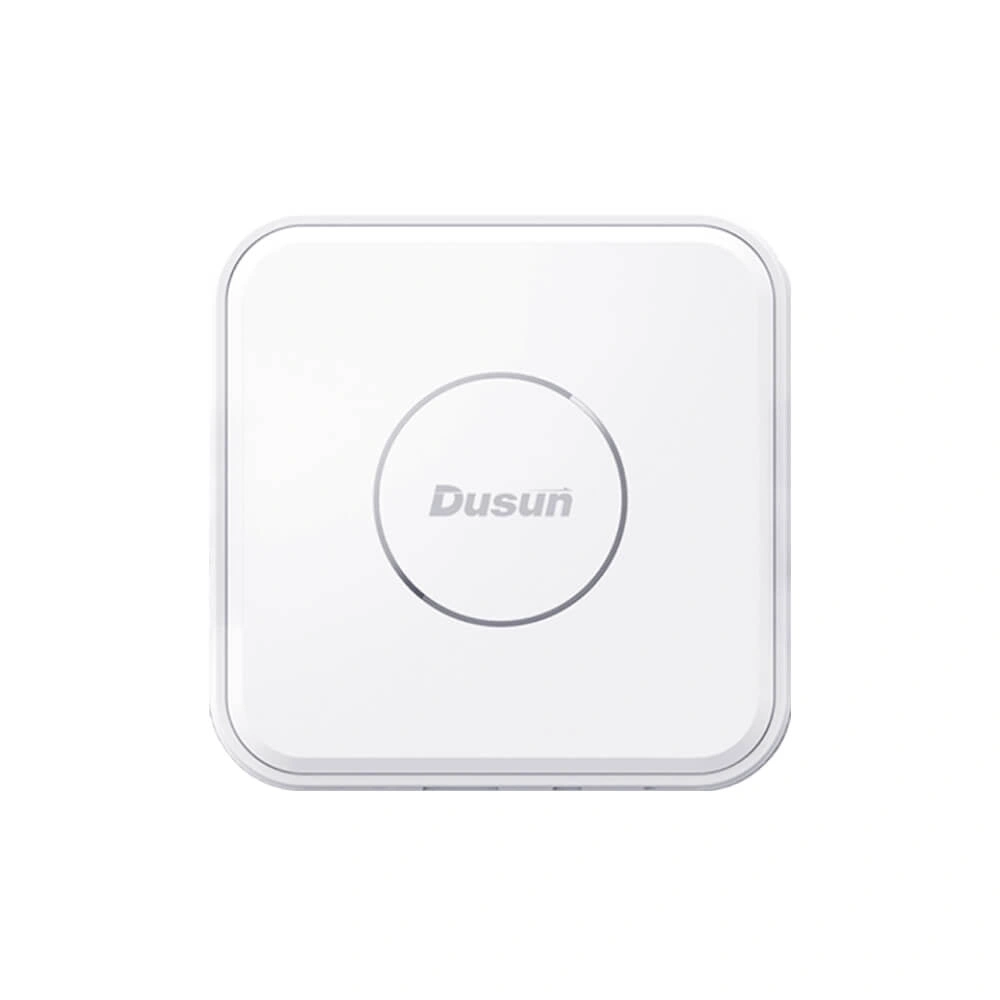

DSGW-210 RK3328 Multi-protocol Smart Gateway, With Li-battery Power Backup

Quick Overview:

  • CPU: RK3328 Quad-core Cortex A53;
  • OS: Debian 11, Ubuntu 20.04, Android 11, Yotco 4.0 for option;
  • RAM: 1GB / 2 GB for option;
  • eMMC: 8GB / 16GB / 32 GB for option;
  • Support 1 * TF card, up to 128GB;
Facebook
WhatsApp
LinkedIn
Skype
Telegram
Email

DSGW-210 smart gateway is one of Dusun IoT’s flagship IoT products supporting a wide range of IoT protocols to connect various devices and optional Li-battery backup for uninterrupted operation, in case of power outages.

DSGW-210 smart IoT gateway can work as the central brain of smart residential and commercial scenarios, managing and controlling all your IoT devices. You can use it to efficiently collect data for informed decision-making, and utilize remote monitoring functions to quickly identify and resolve issues. Explore the endless possibilities of Internet of Everything with DSGW-210.

  • CPU: RK3328 Quad-core Cortex A53;
  • OS: Debian 11, Ubuntu 20.04, Android 11, Yotco 4.0 for option;
  • RAM: 1GB / 2 GB for option;
  • eMMC: 8GB / 16GB / 32 GB for option;
  • Support 1 * TF card, up to 128GB;
  • Support Bluetooth 5.2, Zigbee 3.0, 4G LTE CatM1, Cat1, Cat4; Wi-Fi 2.4GHz / 5GHz; Ethernet;
  • Compatible with mainstream network servers like The Things Industries, AWS, etc.;
  • Lithium back-up battery (5,000 mAh) for option;

Overview of DSGW-210 Smart Gateway

Smart Gateway

DSGW-210 smart gateway is a one-stop IoT gateway device solution including hardware, cloud and application integration services, as well as a development platform to empower manufacturers, brands, and solution integrators. This professional-grade gateway solution allow users to add, reset, and control multiple devices on only one hub.

Remote Control

DSGW-210 smart gateway offers remote monitoring and management features, empowering users to manage device from anywhere in the world. Multiple wireless and wired backhaul options including dual-band Wi-Fi, 4G LTE CatM1, Cat1, Cat4, and 10/100 Mbps Ethernet to transmit data to the remote cloud platforms.

Multiple Models

DSGW-210 smart gateway has multiple models to select, with different protocol choices, Li battery options, GPS functions, ECC hardware encryption, as well as RAM and eMMC for selection. Some are in stock and lead time will be 1-2 weeks, we suggest you to choose  Category A for fast delivery and demonstration.

Ready-to-use Apps

DSGW-210 is also a handy smart gateway with a wide range of compatible applications, including but not limited to Home Assistant, OpenHAB, Node RED, Thingsboard, Jeedom, etc. We have a tutorial on how to install these application, or you can ask for support at our online forum. We have a 24/7 FAE team to handle your issues if necessary.

How to Install Applications on DSGW-210 Smart Gateway

Features of DSGW-210 Smart Gateway

Wired and Wireless Backhaul Connectivities

Via versatile Wi-Fi, 4G LTE, and Ethernet options, the smart gateway capture data from devices and transmit it to the cloud for advanced analytics.

Multi-Protocol Support

Wi-Fi 2.4G/5G, Bluetooth 5.2, Zigbee 3.0,  LoRaWAN, Matter & Thread, M-Bus/Sub-G… Custom protocols integration supported.

multiple backhaul
dsgw 210 supporting multiple

Multiple Operating Systems

Whether you’re a developer, a business professional, or an enthusiast, the smart gateway has Debian 11, Ubuntu 20.04, Android 11, Yotco 4.0 OSs to suit your needs.

Comprehensive Development Files

SDK, firmware packaging, quick start guide, programming landuage sample code, burning tools, docker, APIs … the smart gateway enables a robust and developer-friendly environment.

Pre-Certified

The smart gateway has completed pre-certification, which means you can benefit from accelerated time-to -market by saving time on extensive testing and validation work.

Modular Design

The smart gateway incorporate the modular design, allowing users to easily add, remove, or replace separate components. This may help save costs.

dsgw 210 pre certified

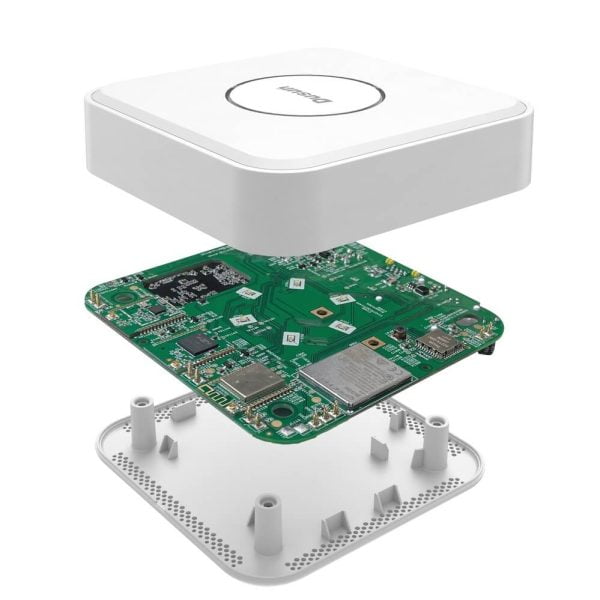

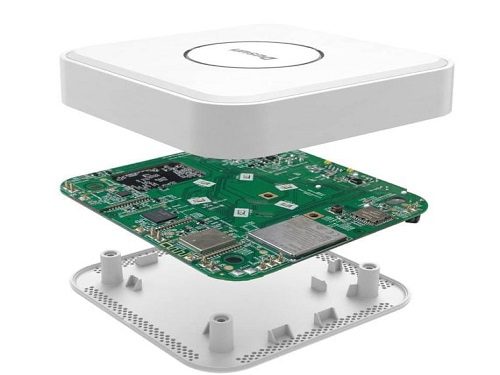

Inner Board & Packaging Info of DSGW-210 Smart Gateway

ront side of DSGW-210 IoT gateway hardware
back side of DSGW-210 IoT gateway hardware
DSGW-210 IoT gateway dimension and sizes
Dimension
Package List
Package List

Parameters of DSGW-210 Smart Gateway

CPU RK3328 Quad-core Cortex A53
System Debian 11, Ubuntu 20.04, Android11, Yocto4.0
RAM Up to 2GB
eMMC Up to 32GB
SD card Up to 128GB
Power Supply USB Type-C 5V/3A
Reset Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds
Switch On/Off power
Network Interface 1 * WAN/LAN variable
USB 1 * USB2.0
SIM 1 * Micro SIM card slot
SD 1 * SD slot
Indicator LEDs(RGB) 1). Power & battery LED 2). Wireless LED 3)LTE indicator
Antenna Zigbee/BLE PCB Antenna, Z-Wave/Wi-Fi FPC Antenna
Li Battery 5000mAH
Installation method Flat, Ceiling, Wall Mounting
RTC Real-Time Clock operated from an onboard battery
Hardware encryption ECC608B
Operating Temperature -10℃~55℃
Storage Temperature -20℃~65℃
Operating humidity 10%~90%
IP rating IP22
