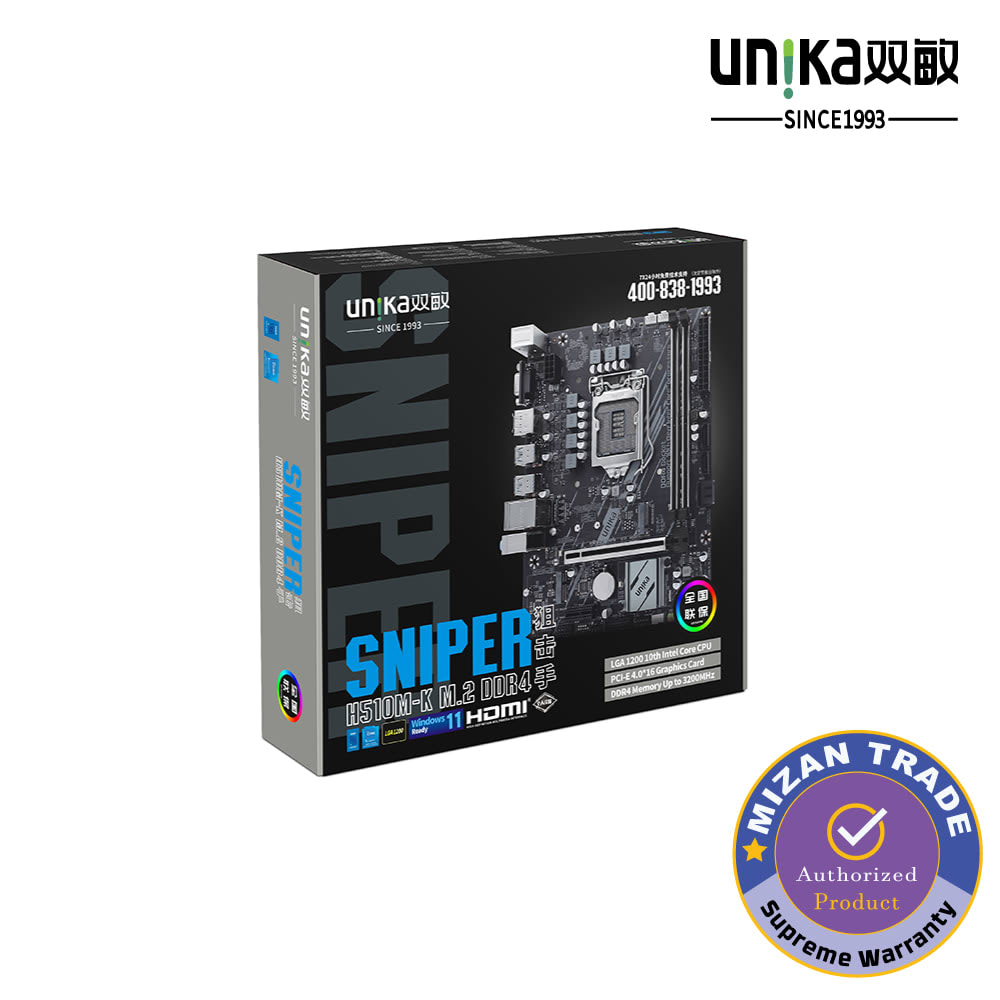

UNIKA H510M-K M.2 DDR4 SNIPER 10th Gen Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-H510M-K M.2 DDR4 SNIPER
- Chipset: Intel H410 / B365 Chipset
- Platform: Intel Platform
- Form Factor: Micro ATX
- CPU Socket Type: LGA1200
Overview & Performance

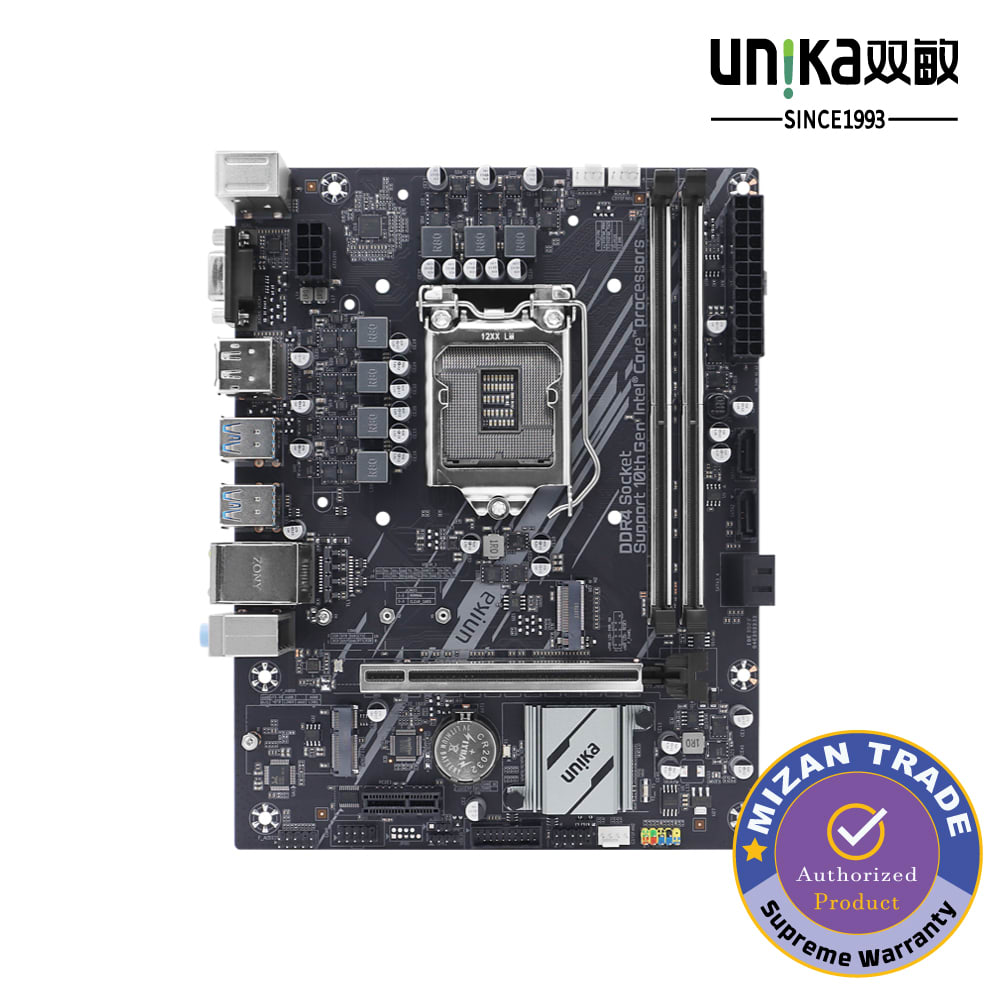

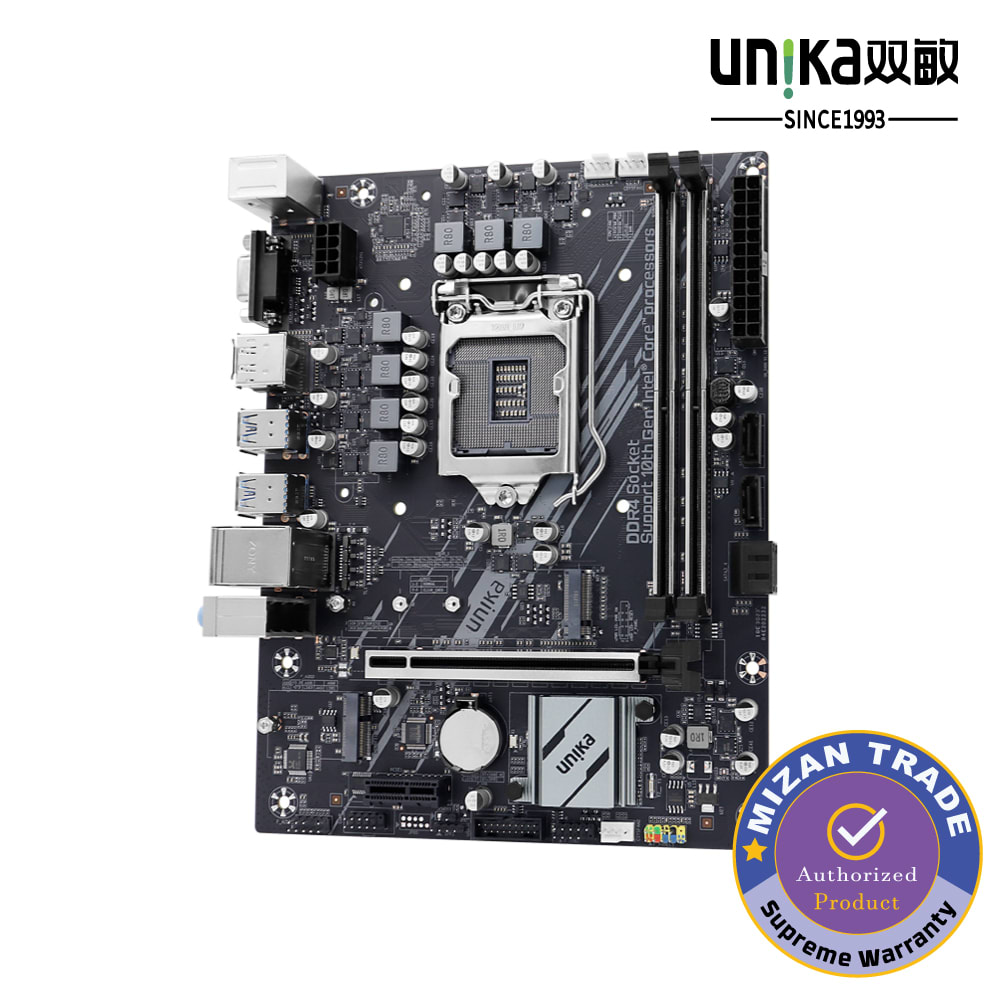

The UNIKA H510M-K M.2 DDR4 Sniper is a high-performance Micro-ATX motherboard engineered for Intel 10th Generation Core processors on the LGA1200 socket
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-H510M-K M.2 DDR4 SNIPER |
| Platform | Intel Platform |
| Form Factor | Micro-ATX (170 mm × 220 mm) |
| Chipset | Intel H410 / B365 Chipset |
| CPU Socket & Support | LGA1200 (Supports Intel 10th / 11th Gen Core i3, i5, i7 Series Processors) |
| Power Phase Design | 7-Phase (5+2) Reinforced VRM Power Delivery |
| Memory Support: | |
| Memory Slots | Dual-Channel DDR4 Architecture |
| Maximum Capacity | Up to 64 GB (Supports 2 × 32GB DDR4 Modules) |
| Supported Memory Speeds | Up to 2933 MHz (OC) with XMP Support |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 PCIe 3.0 x4 Slot (Supports 2242 / 2260 / 2280 NVMe SSDs up to 32Gb/s) |
| SATA Ports | 4 × SATA 3.0 (6Gb/s) Ports |
| Expansion Slots & Connectivity: | |
PCI-E Slots | 1 × PCI-Express 3.0 x16 Slot (Alloy-Reinforced Armor) |
| 1 × PCI-Express 3.0 x1 Slot | |
| LAN Controller | Onboard Realtek 1Gb Gigabit Ethernet Controller |
| Wireless Expansion | 1 × M.2 Wi-Fi Slot (PCIe Protocol Support) |
| Audio Codec | Onboard Realtek ALC897 High-Fidelity Audio Dedicated Sound Card |
| Display Outputs & Connectors: | |

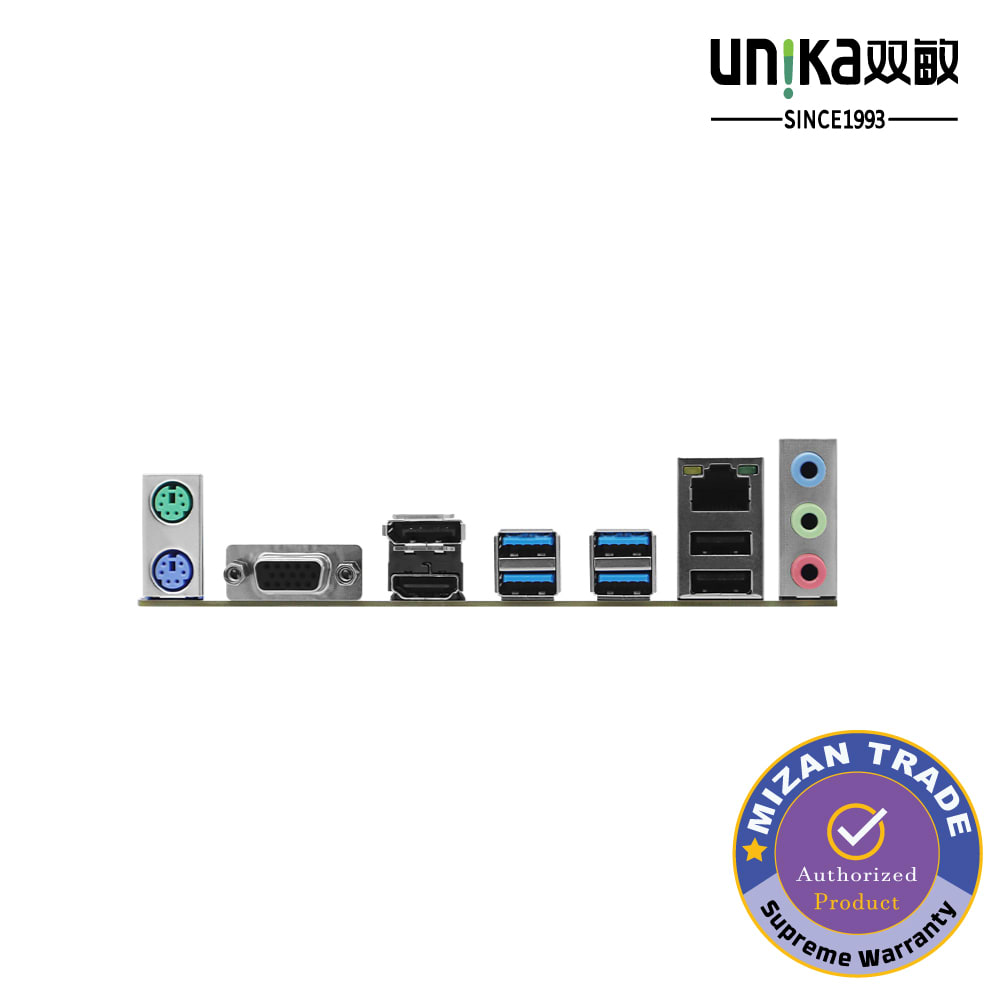

| Video Outputs | 1 × DisplayPort, 1 × HDMI Port, 1 × VGA Port |
| Rear USB Ports | 4 × USB 3.2 Type-A Ports, 2 × USB 2.0 Ports |
Internal Front Headers | 1 × USB 3.2 Type-A Header |
| 1 × USB 2.0 Header | |
| Legacy & Peripheral Ports | 1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port, 1 × RJ45 Network Port, 3 × 3.5mm Audio Jacks |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Connector + 8-pin CPU 12V Connector |
| Recommended Power Supply Unit (PSU) | It is recommended to use a standard 450W to 550W desktop power supply, depending on your environment. |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
7-Phase (5+2) VRM Power Design: Delivers clean, unthrottled power to Intel 10th Gen Core CPUs for prolonged high-load stability
Alloy Armor PCIe Slot: Reinforced GPU slot prevents heavy graphics card sag and enhances mechanical durability
32Gb/s High-Speed M.2 NVMe Slot: Accelerates application load times and OS boot times via PCIe 3.0 x4 bandwidth
Triple Display Connectivity: Features DisplayPort, HDMI, and VGA outputs to accommodate multi-monitor desktop setups
Dedicated M.2 Wi-Fi Interface: Integrated Wi-Fi slot allows easy wireless connectivity upgrades without taking up PCIe slots
