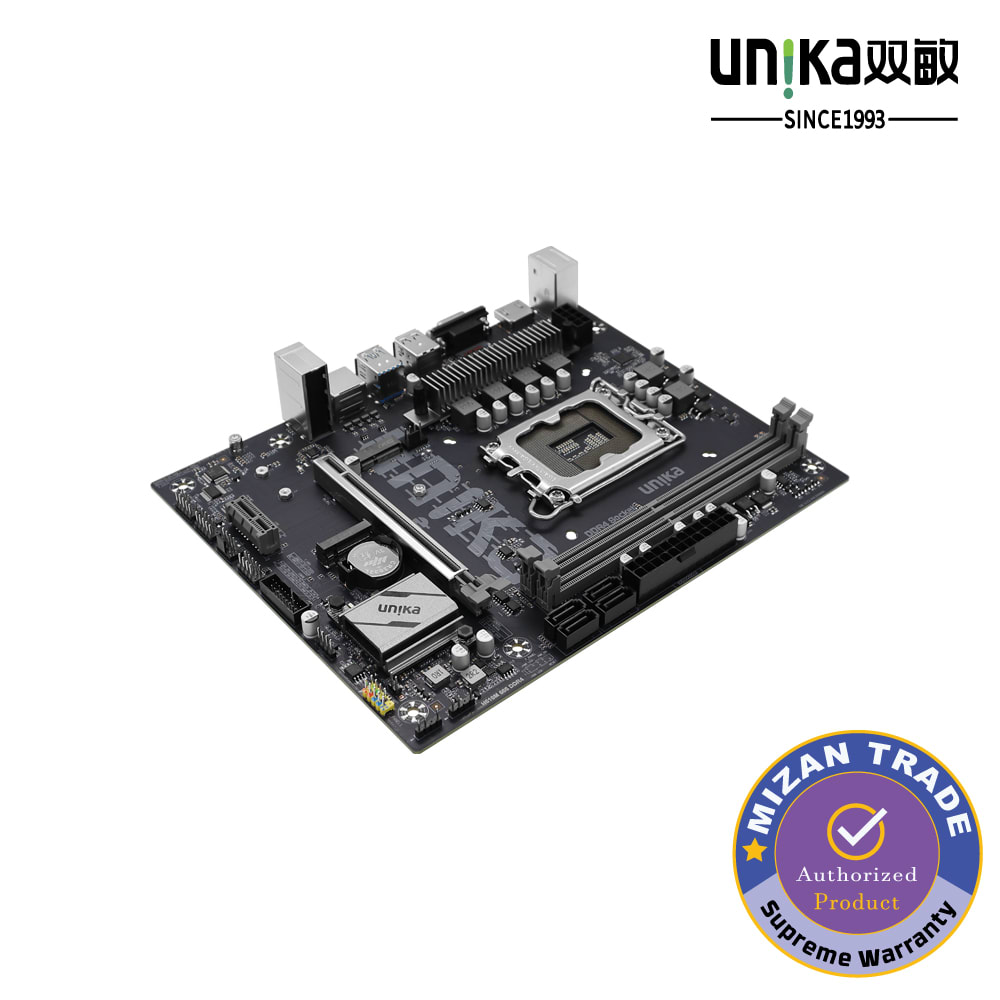

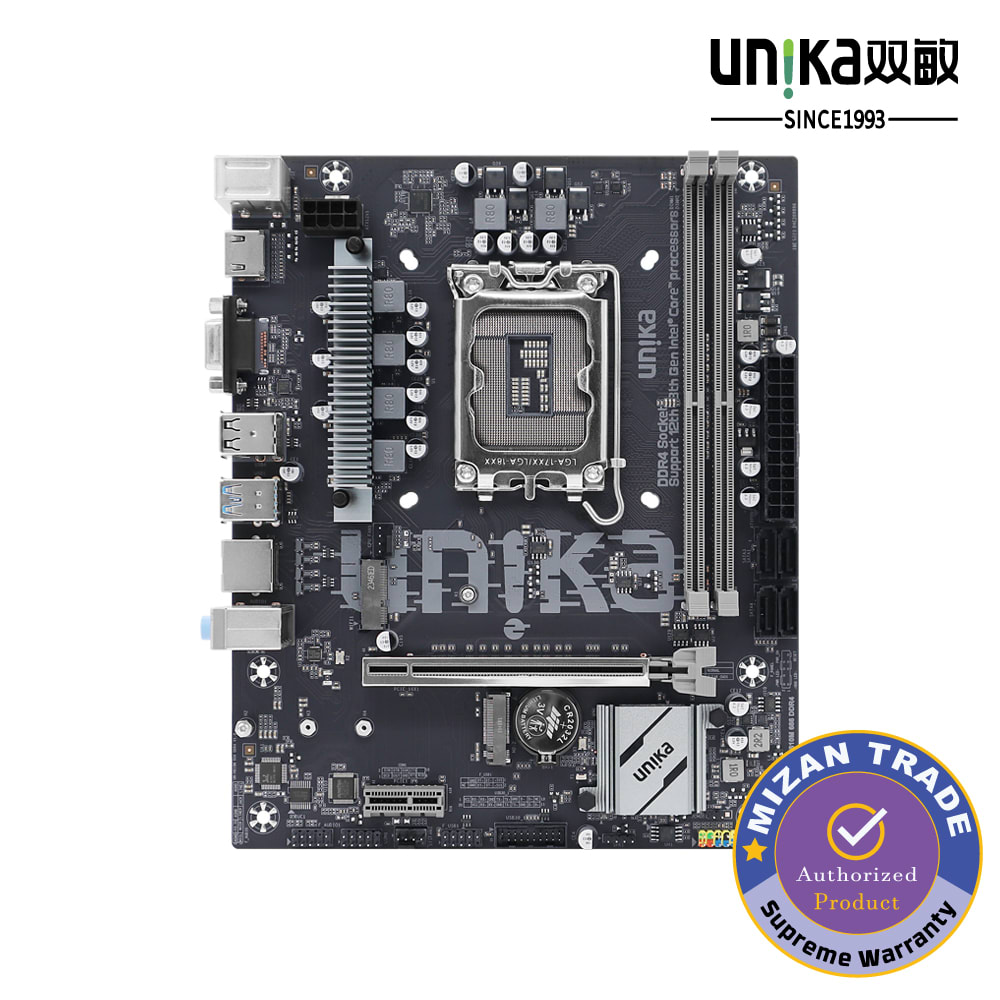

UNIKA H610M 666 SNIPER LGA1700 12th & 13th Gen DDR4 Motherboard

5.0 (0 reviews)
Quick Overview
  • Model: UN-H610M 666 DDR4 SNIPER
  • Chipset: Intel H610 Chipset
  • Platform: Intel Platform
  • Form Factor: Micro ATX
  • CPU Socket Type: LGA1700

Overview & Performance

The UNIKA UN-H610M 666 DDR4 SNIPER is a feature-rich Micro-ATX motherboard designed for Intel 12th and 13th Generation Core i3, i5, and i7 processors on the LGA1700 socket. Engineered with a 6-phase power supply design using RT3628AE PWM controller and low-temperature MOSFETs alongside dedicated VRM heatsinks, it ensures thermal efficiency and system stability under load. With dual-channel DDR4 memory support up to 64GB (3200MHz), high-speed PCIe 3.0 x4 M.2 NVMe storage capability (32Gbps), Intel 1Gbps LAN, and Windows 11 readiness, it offers a solid performance foundation for modern gaming setups and desktop workstations.


Board Architecture & Core Chipset:
Brand & ModelUNIKA UN-H610M 666 DDR4 SNIPER
PlatformIntel Platform
Form FactorMicro-ATX (170 mm × 220 mm)
ChipsetIntel H610 Chipset
CPU Socket & SupportLGA1700 (Supports Intel 12th & 13th Gen Core Processors)
Power Phase Design6-Phase Reinforced VRM Power Delivery with RT3628AE PWM Chip & Low-Temp MOSFETs
Memory Support:
Memory SlotsDual-Channel DDR4 (Non-ECC, Un-buffered)
Maximum CapacityUp to 64 GB (2 × DDR4 Memory Slots)
Supported Memory Speeds2133 / 2666 / 2933 / 3200 MHz
Storage Interfaces:
M.2 Slot1 × M.2 Slot (Supports PCIe 3.0 x4 NVMe SSDs up to 32Gbps)
SATA Ports4 × SATA 3.0 (6Gb/s) Ports
Expansion Slots & Connectivity:
PCI-E Slots
1 × PCI-Express x16 Graphics Card Slot (Alloy-Reinforced Armor)
1 × PCI-Express x1 Slot
LAN Controller1 × Intel I219V 1Gbps Ethernet Controller
Wireless Expansion1 × M.2 Wi-Fi Interface
Audio CodecRealtek ALC892 / ALC897 Codec 7.1 Channel High-Definition Audio
Display Outputs & Connectors:

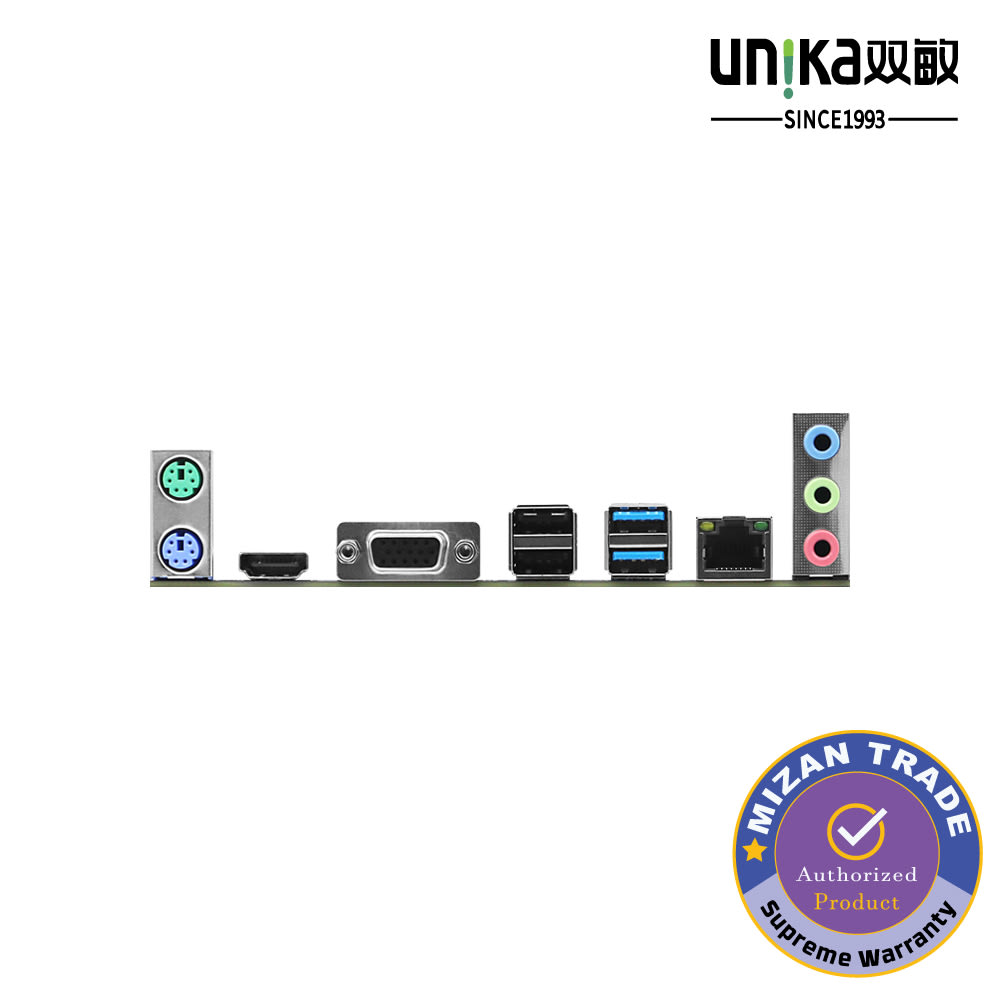

Video Outputs1 × DisplayPort, 1 × HDMI Port, 1 × VGA Port
USB Ports Configuration
4 × USB 3.2 Gen 1 (5Gbps) Ports
6 × USB 2.0 Ports
Power Specifications:
Power Connectors24-pin Main ATX Connector + 8-pin CPU 12V Connector
Recommended Power Supply Unit (PSU)It is recommended to use a standard 450W to 550W desktop power supply, depending on your environment.
Warranty & Reliability
OriginChina
Warranty3-Years Supreme Warranty


Key Highlights

  • Intel 12th & 13th Gen Ready: Built for LGA1700 socket CPUs, offering support for modern hybrid architecture processors.

  • 6-Phase VRM with Heatsink Cooling: Dedicated VRM heatsinks paired with low-temperature MOSFETs prevent thermal throttling during demanding workloads.

  • 32Gbps High-Speed M.2 NVMe Support: Accelerated storage speeds via PCIe 3.0 x4 M.2 interface for rapid OS booting and quick application launch times.

  • Alloy-Armored PCIe Slot: Steel-reinforced expansion slot prevents graphics card bending and provides extra physical durability.

  • Intel 1Gbps LAN & Windows 11 Support: Premium Intel I219V Gigabit controller delivers stable, low-latency wired network performance.
