UNIKA UN-B450M PRO DDR4 BLIZZRADS White AMD Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-B450M PRO DDR4 BLIZZRADS
- Platform: AMD Platform
- Chipset: AMD B450 Chipset
- Form Factor: Micro ATX
- CPU Socket Type: AM4
Overview & Performance

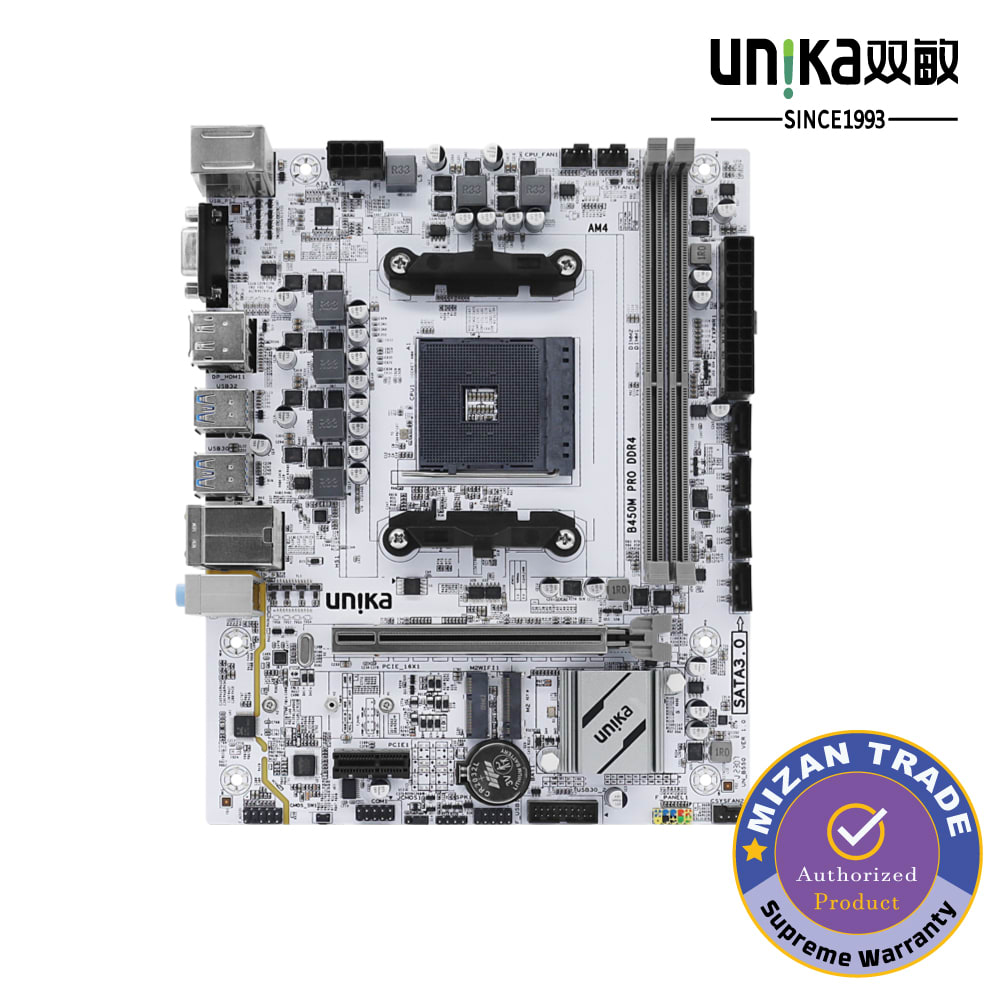

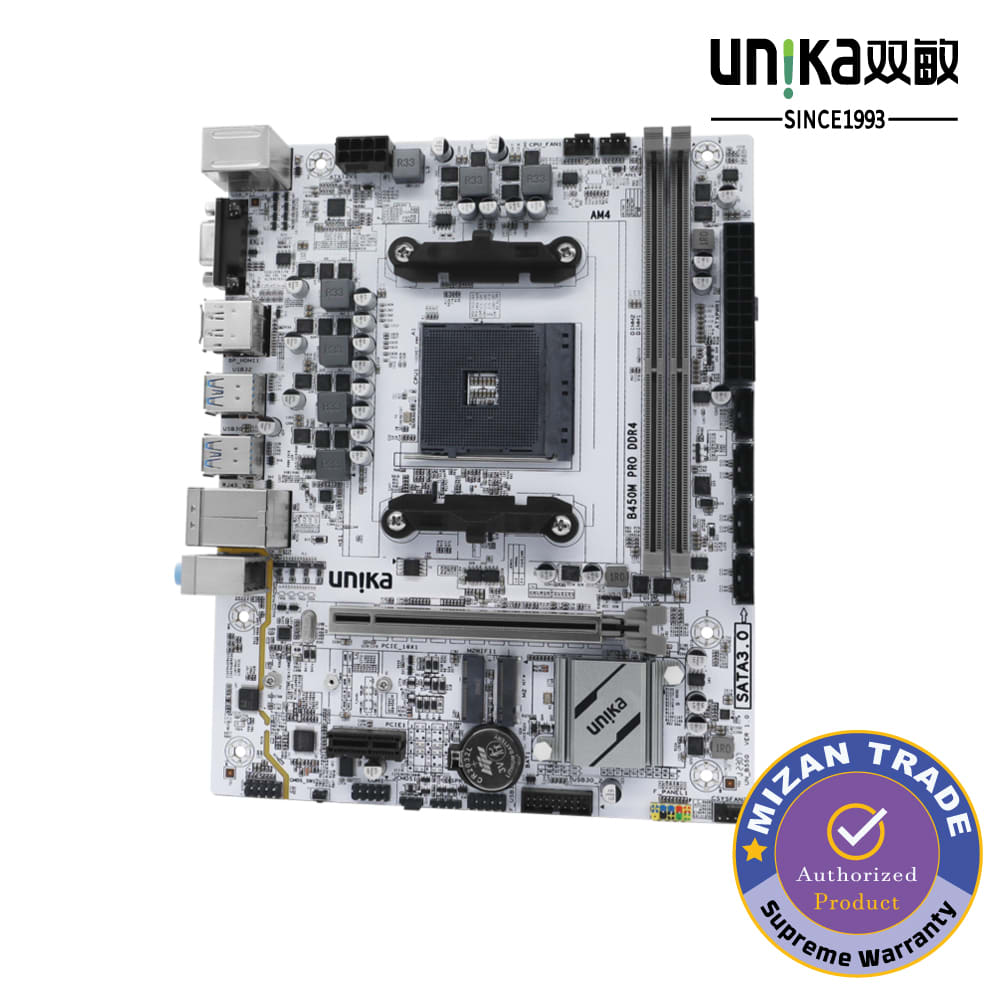

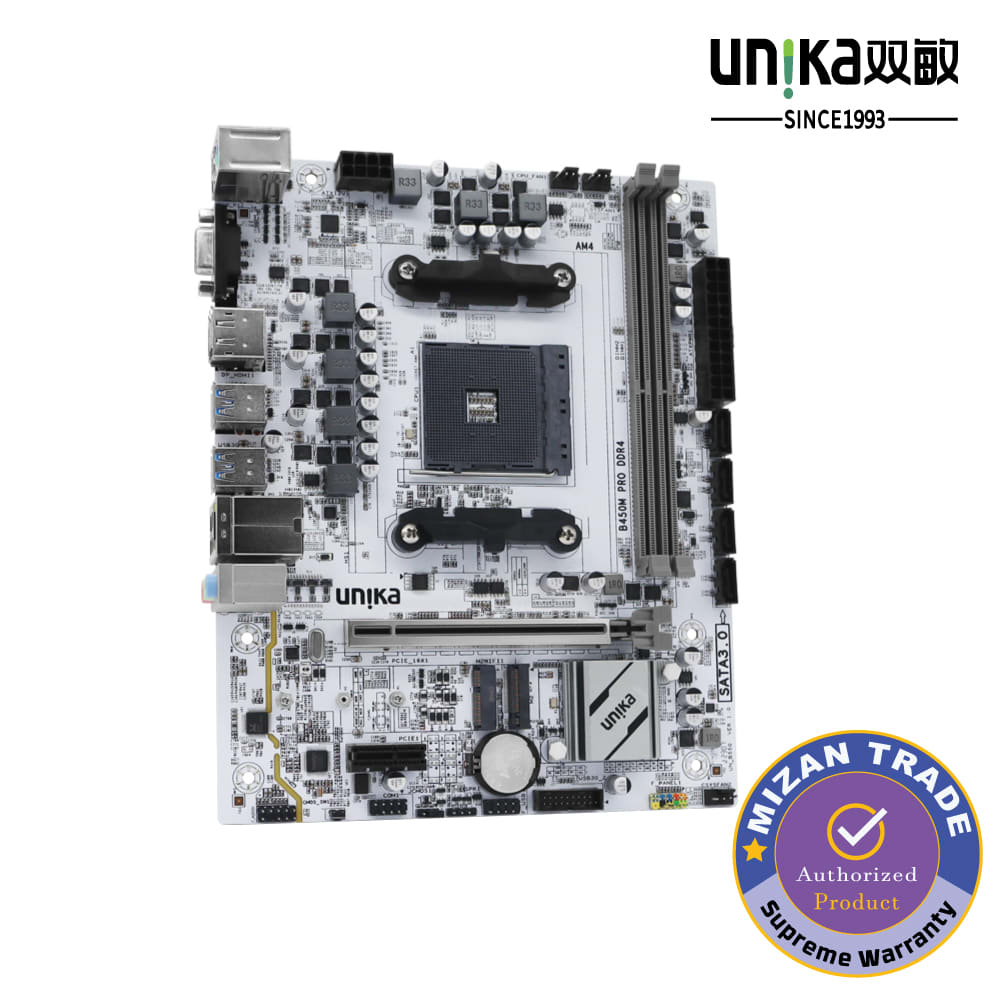

The UNIKA UN-B450M PRO DDR4 BLIZZARDS is a feature-packed Micro-ATX motherboard designed for AMD Socket AM4 processors, supporting AMD Ryzen CPUs and Ryzen APUs with integrated graphics
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-B450M PRO DDR4 BLIZZARDS |
| Platform | AMD Platform |
| Form Factor | Micro-ATX (170 mm × 220 mm) |
| Chipset | AMD B450 Chipset |
| CPU Socket & Support | AMD Socket AM4 (Supports AMD Ryzen CPUs & Ryzen APUs) |
| Memory Support: | |
| Memory Slots | 2 × DDR4 DIMM Slots |
| Overclocking Support | XMP Memory Profile Supported |
| Maximum Capacity | Up to 64 GB (Supports 8GB / 16GB / 32GB per DIMM slot, non-ECC) |
| Supported Memory Speeds | Dual Channel DDR4 3200(OC) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 / 1866 MHz |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 Slot (Supports 2242 / 2260 / 2280 type storage devices, PCIe 3.0 x4 NVMe & SATA mode up to 32Gb/s) |
| SATA Ports | 4 × SATA 3.0 (6Gb/s) Connectors (Supports AHCI & RAID 0, 1, 10) |
| Expansion Slots & Connectivity: | |
PCI-E Slots | 1 × PCI-Express 3.0 x16 Graphics Card Slot (Runs at x8 speed when using APUs) |
| 1 × PCI-Express x1 Slot | |
| LAN Controller | Onboard Realtek 8111H 10/100/1000 Mb/s Auto-Negotiation Gigabit Ethernet |
| Wireless Expansion | 1 × M.2 Wi-Fi Interface |
| Audio Codec | Onboard Realtek ALC897 High-Fidelity Dedicated Audio Sound Card |
| Connectivity & I/O Ports | |

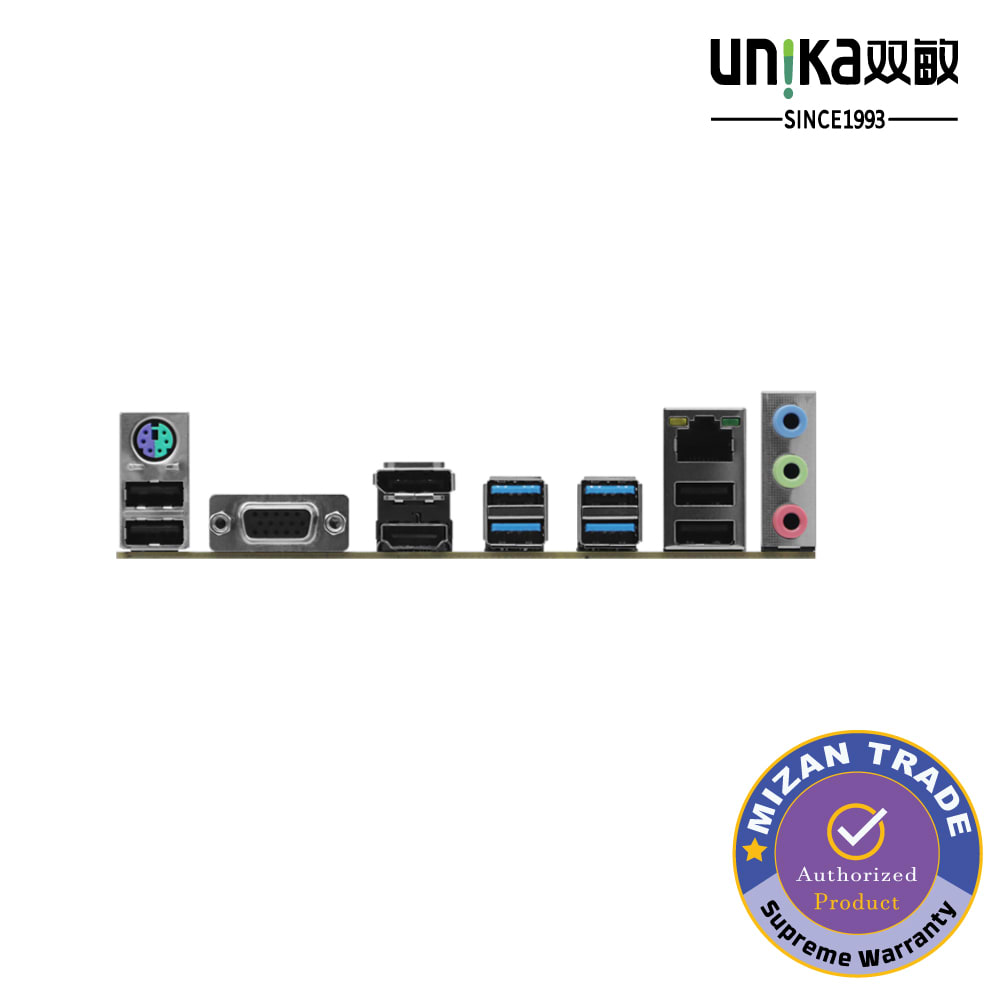

| Video Outputs | 1 × DisplayPort, 1 × HDMI Port, 1 × VGA Port |
| Rear USB Ports | 4 × USB 3.2 Ports, 2 × USB 2.0 Ports |
Internal Front Headers | 1 × USB 3.2 (Gen1) Header (expandable to 2 × USB 3.2 ports) |
| 1 × USB 2.0 Header (expandable to 2 × USB 2.0 ports) | |
| Peripheral Ports | 1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port, 1 × RJ45 LAN Port, 3 × 3.5mm Audio Jacks |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Power Connector + 8-pin CPU 12V Connector |
| Recommended Power Supply Unit (PSU) | It is recommended to use a standard 450W to 550W desktop power supply, depending on your environment. |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
AMD Ryzen AM4 Support: Designed for full compatibility with AMD Ryzen processors and APUs
Dual-Channel DDR4 up to 64GB with XMP: Supports up to 64GB RAM with high-speed 3200MHz OC profile support
Triple Video Outputs & High-Speed M.2: Outfitted with DisplayPort, HDMI, and VGA outputs
Dedicated M.2 Wi-Fi Interface: Includes an integrated M.2 Wi-Fi slot
Upgraded 8-Pin Power Delivery: Features an 8-pin CPU power input alongside the 24-pin ATX connector
