UNIKA UN-B760M 666 DDR4 SNIPER 12th/13th/14th Gen Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-B760M 666 DDR4 SNIPER
- Chipset: Intel B760 Chipset
- Platform: Intel Platform
- Form Factor: Micro ATX
- CPU Socket Type: LGA1700
Overview & Performance

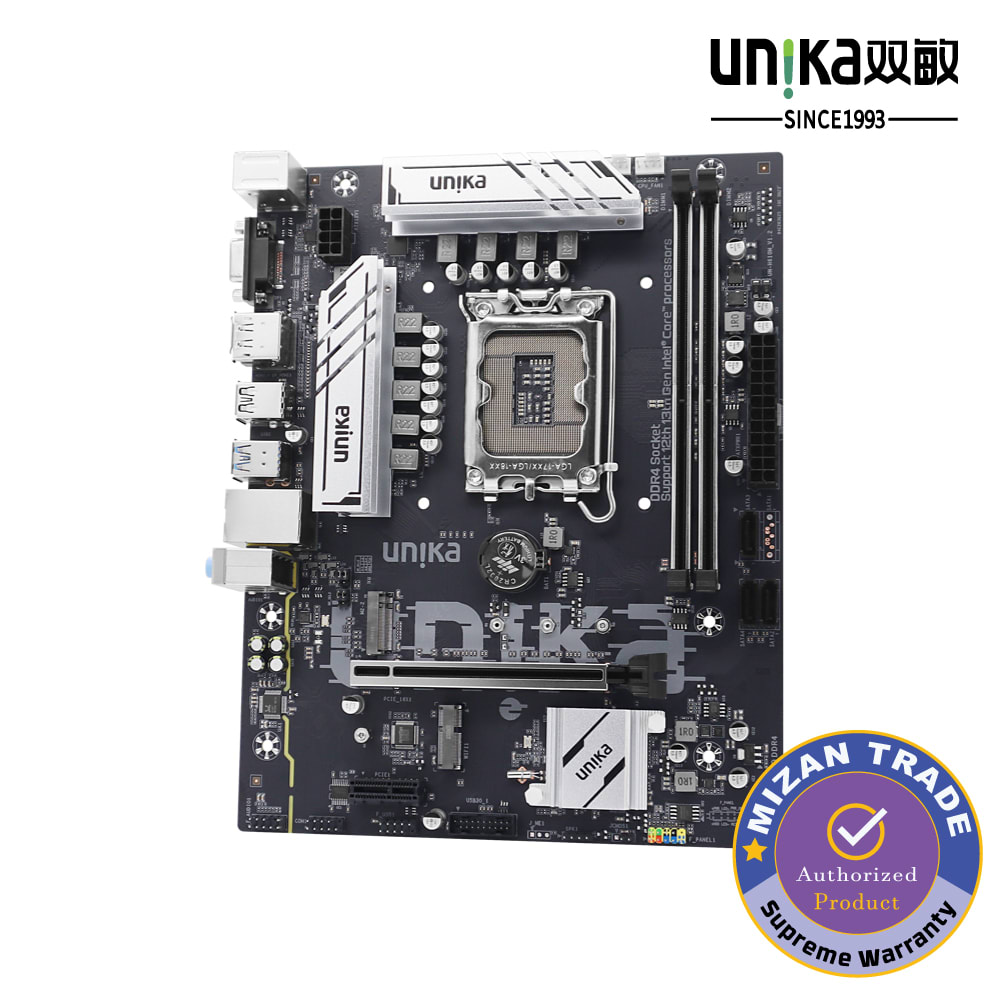

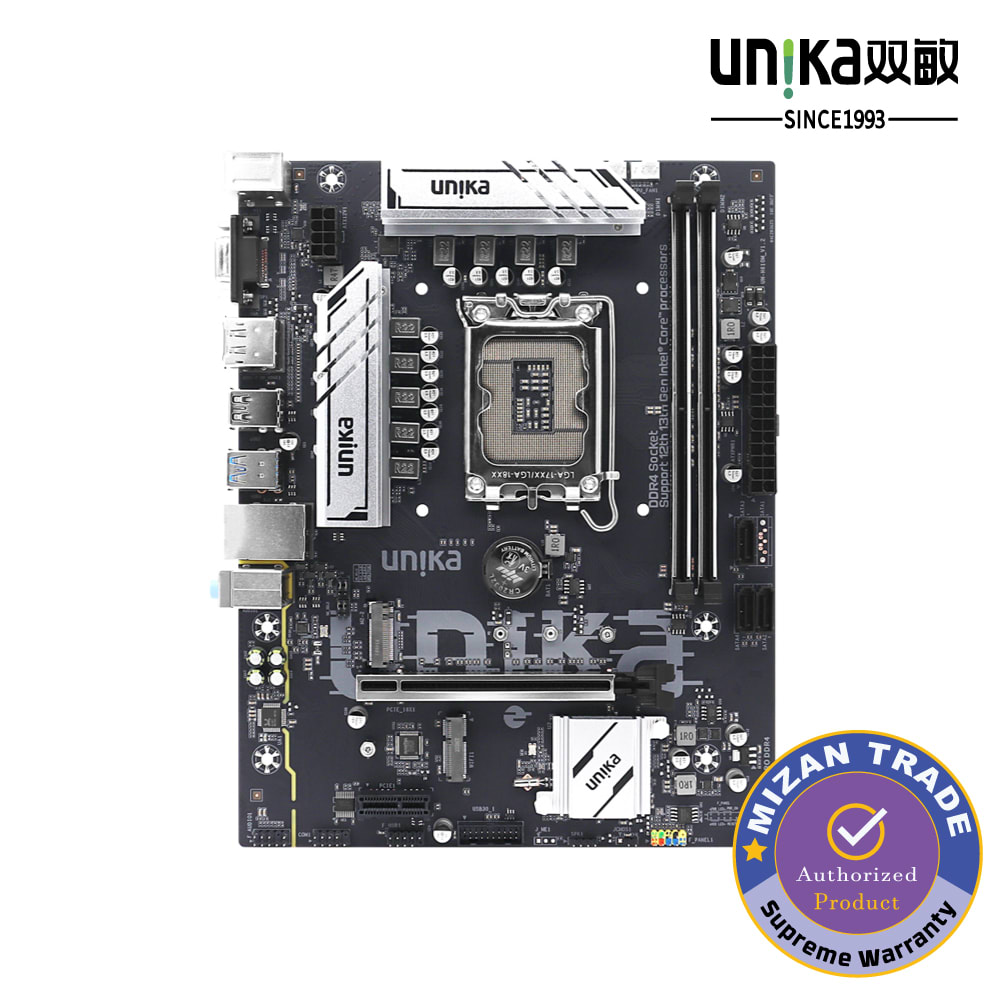

The UNIKA B760M 666 DDR4 SNIPER is a feature-rich Micro-ATX motherboard designed to support Intel 12th, 13th, and 14th Generation Core i3, i5, and i7 processors on the LGA1700 socket
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-B760M 666 DDR4 SNIPER |
| Platform | Intel Platform |
| Form Factor | Micro-ATX (170 mm × 220 mm) |
| Chipset | Intel B760 Chipset |
| CPU Socket & Support | LGA1700 (Supports Intel 12th, 13th, and 14th Gen Core Processors) |
| Memory Support: | |
| Memory Slots | Dual-Channel DDR4 Memory Architecture |
| Total RAM Slots | 2 × DDR4 Memory Slots |
| Maximum Capacity | Up to 64 GB |
| Supported Memory Speeds | Up to DDR4 3200 MHz |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 Slot (Supports High-Speed M.2 NVMe & SATA SSDs) |
| SATA Ports | 4 × SATA 3.0 (6Gb/s) Ports |
| Expansion Slots & Connectivity: | |
PCI-E Slots | 1 × PCI-Express 4.0 x16 Graphics Card Slot (Alloy-Armored) |
| 1 × PCI-Express x1 Slot | |
| LAN Controller | Onboard Realtek 8111H Gigabit Ethernet Controller |
| Wireless Expansion | 1 × M.2 Wi-Fi Interface |
| Audio Codec | Onboard Realtek ALC897 High-Definition Audio Dedicated Sound Card |
| Display Outputs & Connectors: | |

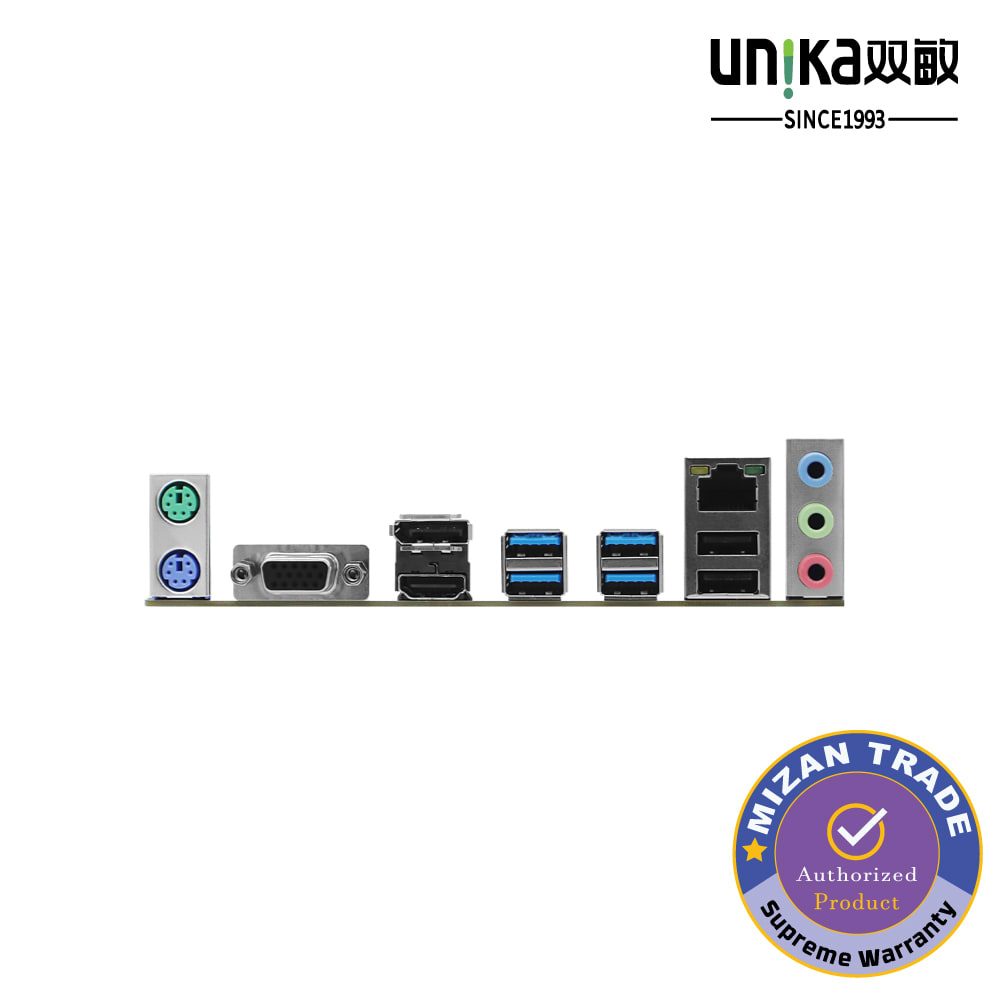

| Video Outputs | 1 × HDMI Port, 1 × DisplayPort, 1 × VGA Port |
USB Ports Configuration | Rear 5 × USB 3.2 Ports, 3 × USB 2.0 Ports |
| Headers 1 × USB 3.2 Header (Expandable to 2 × USB 3.2), 1 × USB 2.0 Header (Expandable to 2 × USB 2.0) | |
Peripheral & Audio Ports | × PS/2 Keyboard Port, 1 × PS/2 Mouse Port1 |
| 3 × 3.5mm Audio Jacks | |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Connector + 8-pin CPU 12V Power Connector |
| Recommended Power Supply Unit (PSU) | It is recommended to use a standard 450W to 550W desktop power supply, depending on your environment. |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
Next-Gen Intel CPU Ready: Broad compatibility across Intel 12th, 13th, and 14th Gen Core LGA1700 processors for maximum upgrade path flexibility
PCIe 4.0 x16 Graphics Support: Features a high-bandwidth PCIe 4.0 x16 slot with alloy shielding to comfortably host modern gaming graphics cards
Enhanced VRM Heatsink Cooling: Outfitted with dedicated metal heat spreaders over the power delivery modules to ensure sustained performance without thermal throttling
M.2 NVMe SSD & Wi-Fi Slots: Built-in M.2 SSD slot for fast operating system boot times alongside a dedicated M.2 Wi-Fi port for wireless card upgrades
Versatile Triple Display & Extensive USB: Features HDMI, DisplayPort, and VGA display options
