UNIKA UN-H510M PRO V6 SNIPER DDR4 10th/11th Gen Micro ATX Motherboard

Name: UNIKA UN-H510M PRO V6 SNIPER DDR4 10th/11th Gen Micro ATX Motherboard
Brand: UNIKA
SKU: MT-758155
Availability: InStock

5.0 (0 reviews)

Special Price

Call for Price: +8801709967815

Quick Overview

Model: UN-H510M PRO V6 SNIPER
Chipset: Intel H470
Platform: Intel Platform
Form Factor: Micro ATX
CPU Socket Type: LGA1200

Overview & Performance

The UNIKA UN-H510M PRO V6 SNIPER is a robust Micro-ATX motherboard designed for Intel 10th and 11th Generation Core i3, i5, and i7 processors (LGA1200 socket). Powered by the Intel H470 chipset, it features dual-channel DDR4 memory support up to 64GB, a high-speed PCI-Express 4.0 x16 graphics slot, and a PCIe 3.0 x4 NVMe M.2 SSD interface for rapid system boot and storage load times. Complete with triple display outputs (DisplayPort, HDMI, VGA), an M.2 Wi-Fi port, and upgraded 24-pin + 8-pin power delivery, it serves as an excellent foundation for mid-tier gaming rigs and office workstations.

Board Architecture & Core Chipset:
Brand & Model	UNIKA UN-H510M PRO V6 SNIPER
Platform	Intel Platform
Form Factor	Micro-ATX (170 mm × 220 mm)
Chipset	Intel H470 Chipset
CPU Socket & Support	LGA1200 (Supports Intel 10th / 11th Gen Core i3, i5, i7 Series Processors)
Memory Support:
Memory Slots	2 × DDR4 Memory Slots
Maximum Capacity	Up to 64 GB
Supported Memory Speeds	DDR4 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Storage Interfaces:
M.2 Slot	1 × M.2 Slot (Supports 2242 / 2260 / 2280 type storage devices, PCIe 3.0 x4 NVMe mode)
SATA Ports	4 × SATA 3.0 (6Gb/s) Ports
Expansion Slots & Connectivity:
PCI-E Slots	1 × PCI-Express 4.0 x16 Graphics Card Slot
PCI-E Slots	1 × PCI-Express x1 Slot
LAN Controller	Onboard Realtek 8111H Gigabit Network Card
Wireless Expansion	1 × M.2 Wi-Fi Interface
Audio Codec	Onboard Realtek ALC897 High-Fidelity Audio Independent Sound Card
Display Outputs & Connectors:
Video Outputs	1 × DisplayPort, 1 × HDMI Port, 1 × VGA Port
Rear USB Ports	4 × USB 3.2 Ports, 2 × USB 2.0 Ports
Internal Front Headers	1 × USB 3.2 Header (Expandable to 2 × USB 3.2 ports)
Internal Front Headers	1 × USB 2.0 Header (Expandable to 2 × USB 2.0 ports)

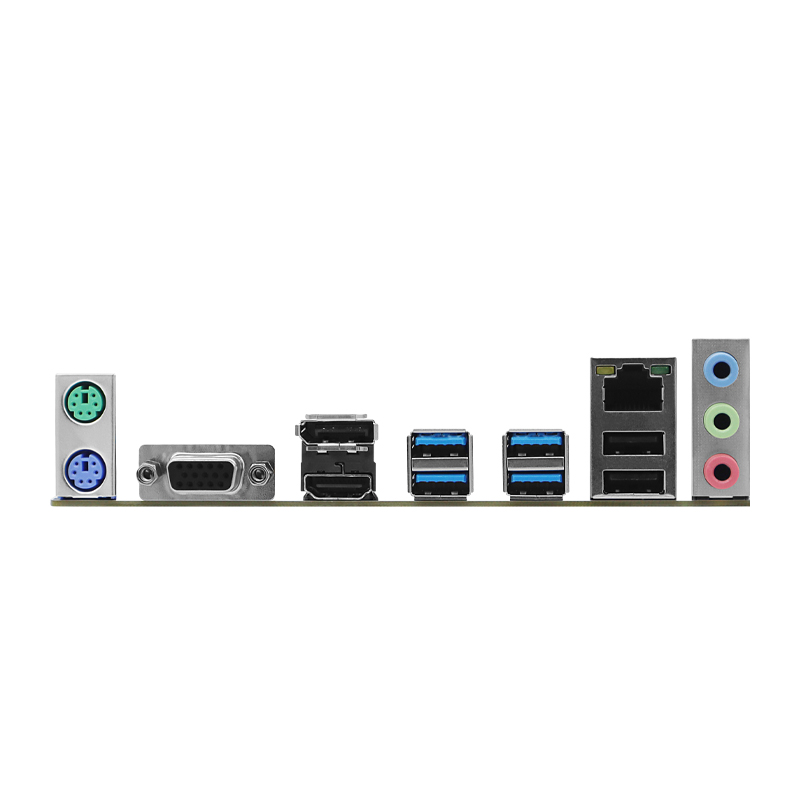

Legacy & Peripheral Ports	1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port, 1 × RJ45 Network Port, 3 × 3.5mm Audio Jacks
Power Specifications:
Power Connectors	24-pin Main ATX Power Connector + 8-pin CPU 12V Connector
Recommended Power Supply Unit (PSU)	It is recommended to use a standard 450W to 550W desktop power supply, depending on your environment.
Warranty & Reliability
Origin	China
Warranty	3-Years Supreme Warranty

Key Highlights

LGA1200 10th & 11th Gen Support: Seamlessly pairs with Intel 10th and 11th Gen Core processors for improved multi-threaded performance.
PCIe 4.0 x16 Support: Supports PCIe 4.0 standard for high-bandwidth modern discrete graphics cards.
PCIe 3.0 x4 NVMe M.2 & M.2 Wi-Fi: Built-in high-speed M.2 storage slot alongside a dedicated M.2 slot for adding wireless connectivity.
Triple Video Outputs: Outfitted with DisplayPort, HDMI, and VGA display connectors for effortless multi-monitor capability.
Upgraded 8-Pin CPU Power: 8-pin 12V CPU power connector coupled with the 24-pin main header ensures steady current flow to CPU cores under full load.
