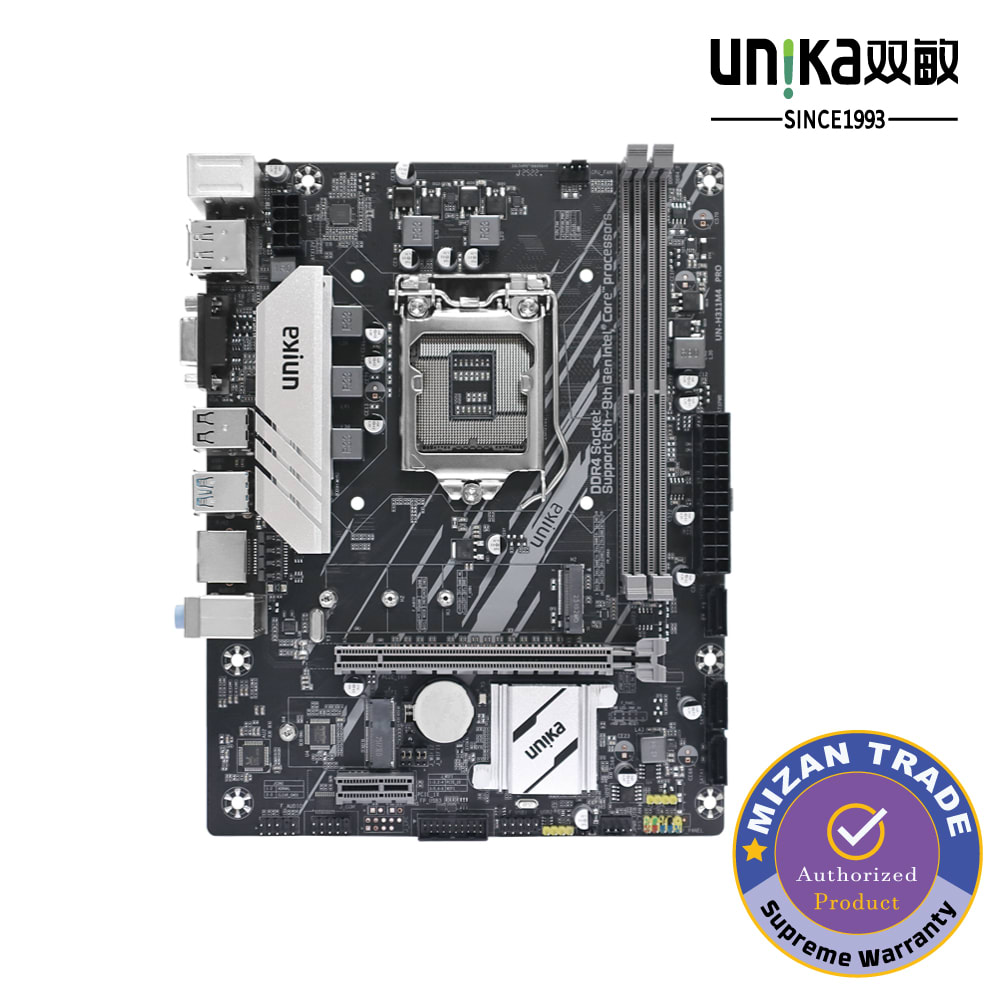

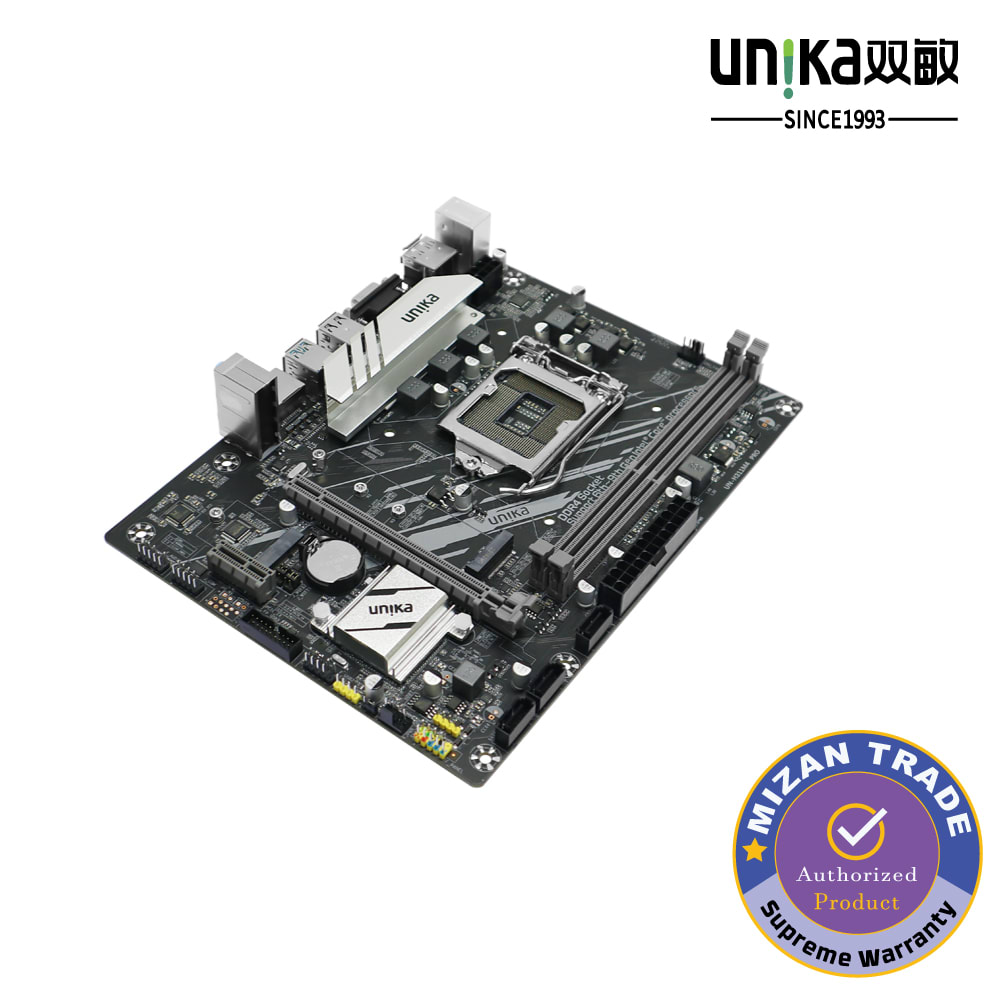

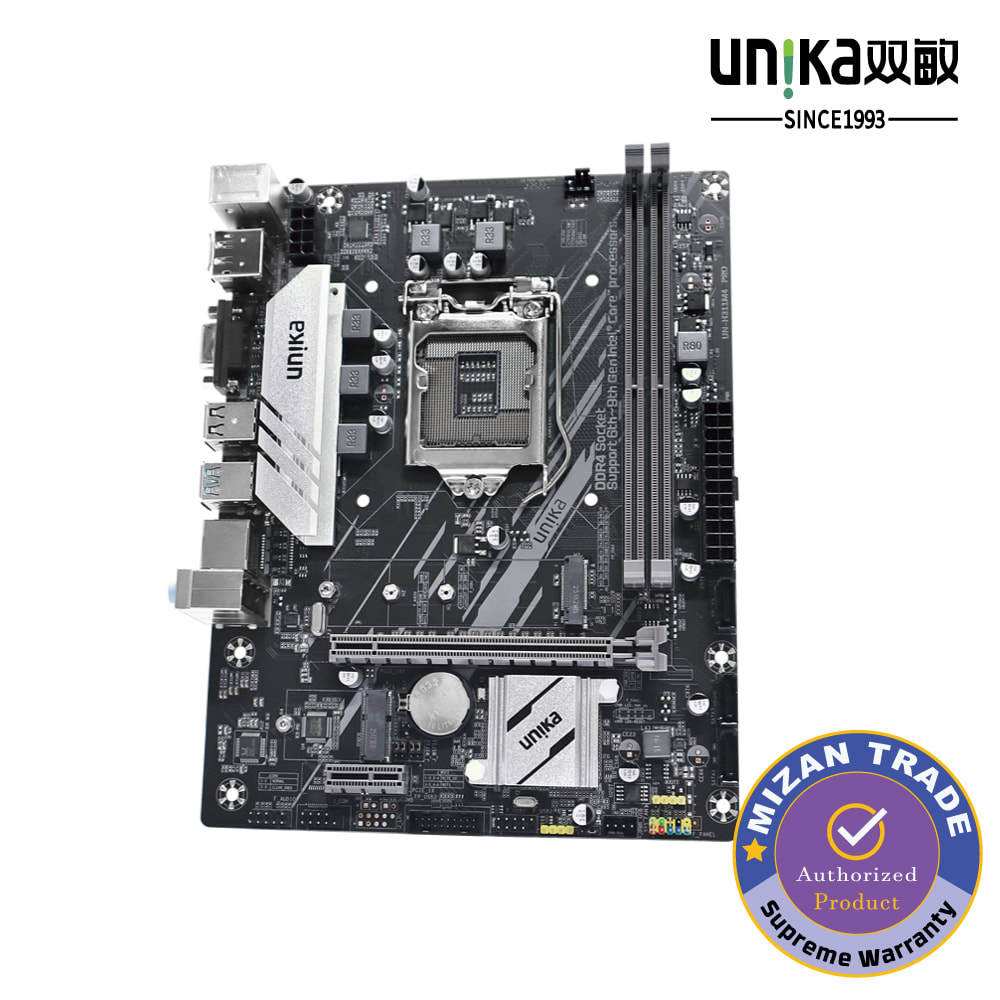

UNIKA UN-H311M4 PRO SNIPER DDR4 6th to 9th Gen Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-H311M PRO SNIPER
- Chipset: Intel H110 Chipset
- Platform: Intel Platform
- Form Factor: Micro ATX
- CPU Socket Type: LGA 1511
Overview & Performance
The UNIKA H311M4 PRO is a compact Micro-ATX motherboard designed to support 6th, 7th, 8th, and 9th Generation Intel Core i3, i5, i7, Pentium, and Celeron processors (LGA1151 socket)
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-H311M4 PRO SNIPER |
| Platform | Intel Platform |
| Form Factor | Micro-ATX (170 mm × 220 mm) |
| Chipset | Intel H110 Chipset |
| CPU Socket & Support | LGA1151 (Supports Intel 6th / 7th / 8th / 9th Gen Core i3, i5, i7, Pentium, and Celeron Processors) |
| Memory Support: | |
| Memory Slots | Dual-Channel DDR4 Memory Architecture |
| Total RAM Slots | 2 × DDR4 Memory Slots |
| Maximum Capacity | Up to 64 GB (Supports 2 × 32GB DDR4 DIMM Modules) |
| Supported Memory Speeds | DDR4 3000MHz (OC) |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 PCIe 3.0 x4 Slot (Supports high-speed NVMe storage up to 32Gb/s) |
| SATA Ports | 3 × SATA 3.0 (6Gb/s) Ports |
| Expansion Slots & Connectivity: | |
| PCI-E Slots | 1 × PCI-Express 3.0 x16 Graphics Card Slot |
| LAN Controller | Realtek 1Gb Gigabit Ethernet Controller |
| Wireless Expansion | 1 × M.2 Wi-Fi Port |
| Audio Codec | Onboard Realtek ALC897 High-Fidelity Audio Independent Sound Card |
| Rear I/O & Internal Headers: | |

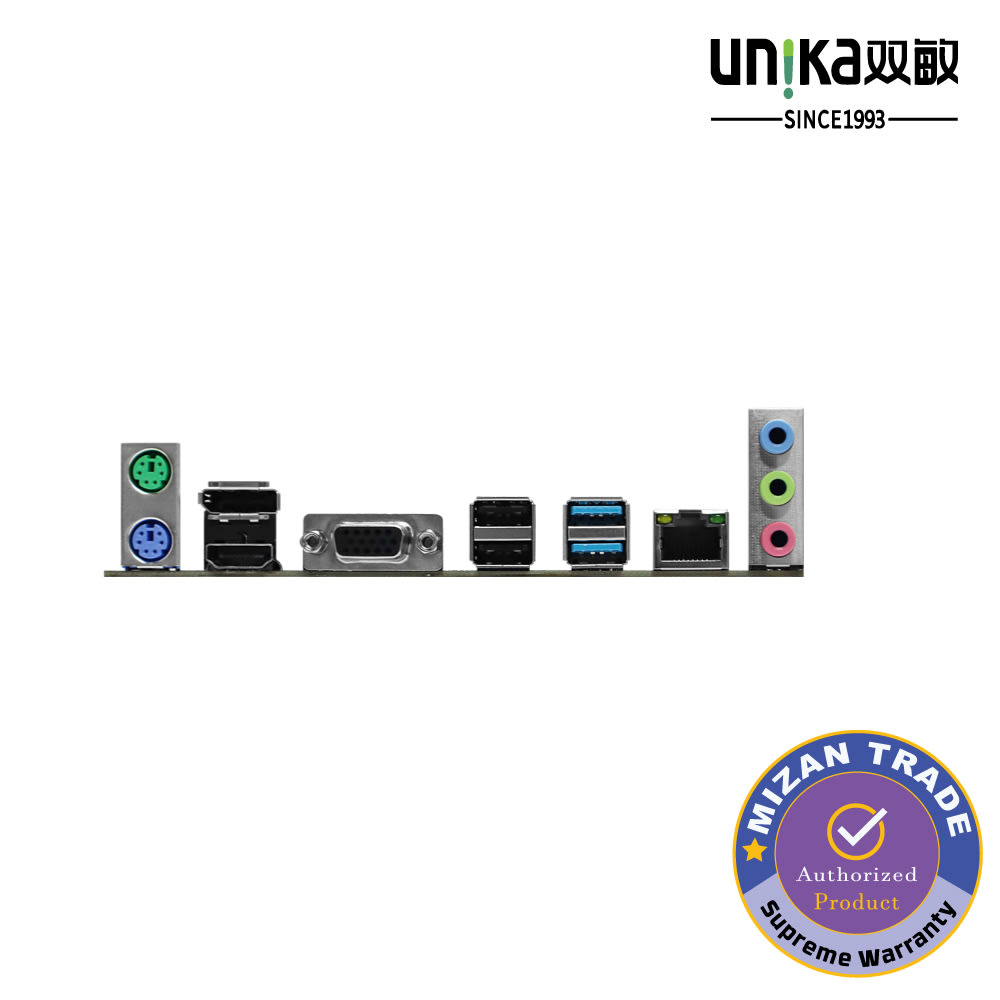

| Video Outputs | 1 × HDMI Port, 1 × DisplayPort, 1 × VGA Port |
| Rear USB Ports | 2 × USB 3.0 Type-A Ports, 2 × USB 2.0 Ports |
Internal Front Headers | 1 × USB 3.0 Type-A Header |
| 1 × USB 2.0 Header | |
| Legacy Ports | 1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port |
| Fan Headers | 1 × CPU Fan Header, 1 × SYS Fan Header |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Power Connector + 8-pin CPU 12V Power Connector |
| Recommended Power Supply Unit (PSU) | It is recommended to use a standard 350W to 450W desktop power supply, depending on your environment. |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
Broad LGA1151 CPU Compatibility: Supports 6th, 7th, 8th, and 9th Gen Intel Core processors, making it ideal for cost-effective system builds or upgrades
Ultra-Fast M.2 NVMe Performance: Integrated M.2 PCIe 3.0 x4 slot provides ultra-high speeds up to 32Gb/s for lighting-fast operating system boot times
Expanded 64GB DDR4 Capacity: Accommodates up to 64GB DDR4 memory (2 × 32GB) with up to 3000MHz (OC) speeds for heavy multi-tasking and gaming
Triple Display Connectivity: Outfitted with HDMI, DisplayPort, and VGA display outputs to handle flexible multi-monitor configurations
Dedicated M.2 Wi-Fi Socket: Features a built-in M.2 Wi-Fi slot for adding a wireless networking card without blocking any expansion slots
