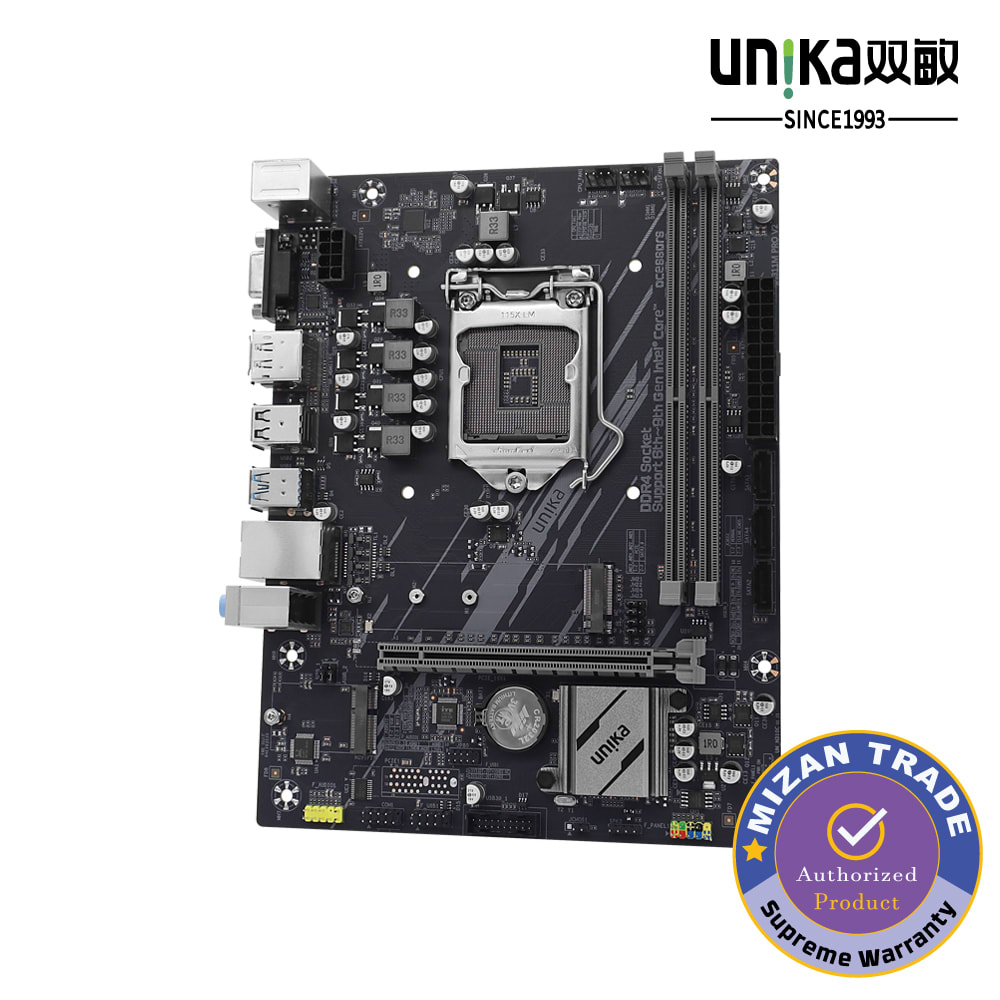

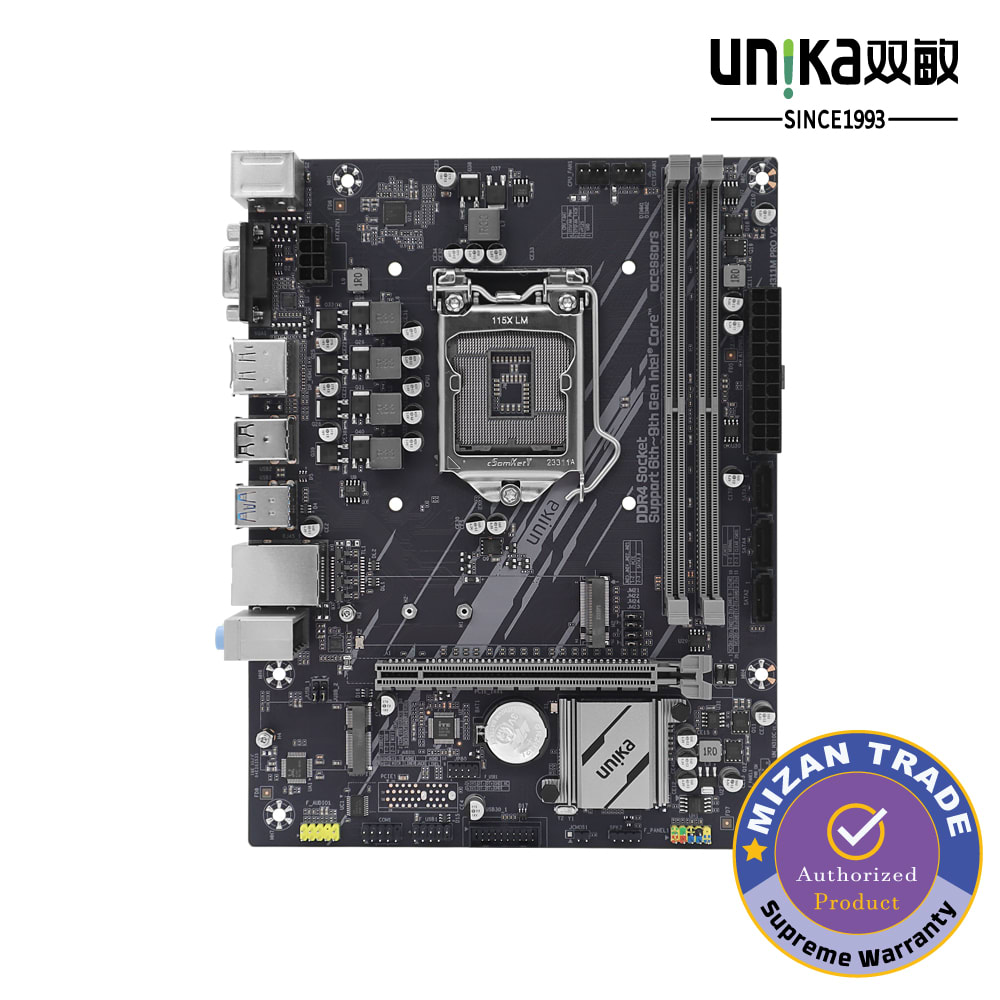

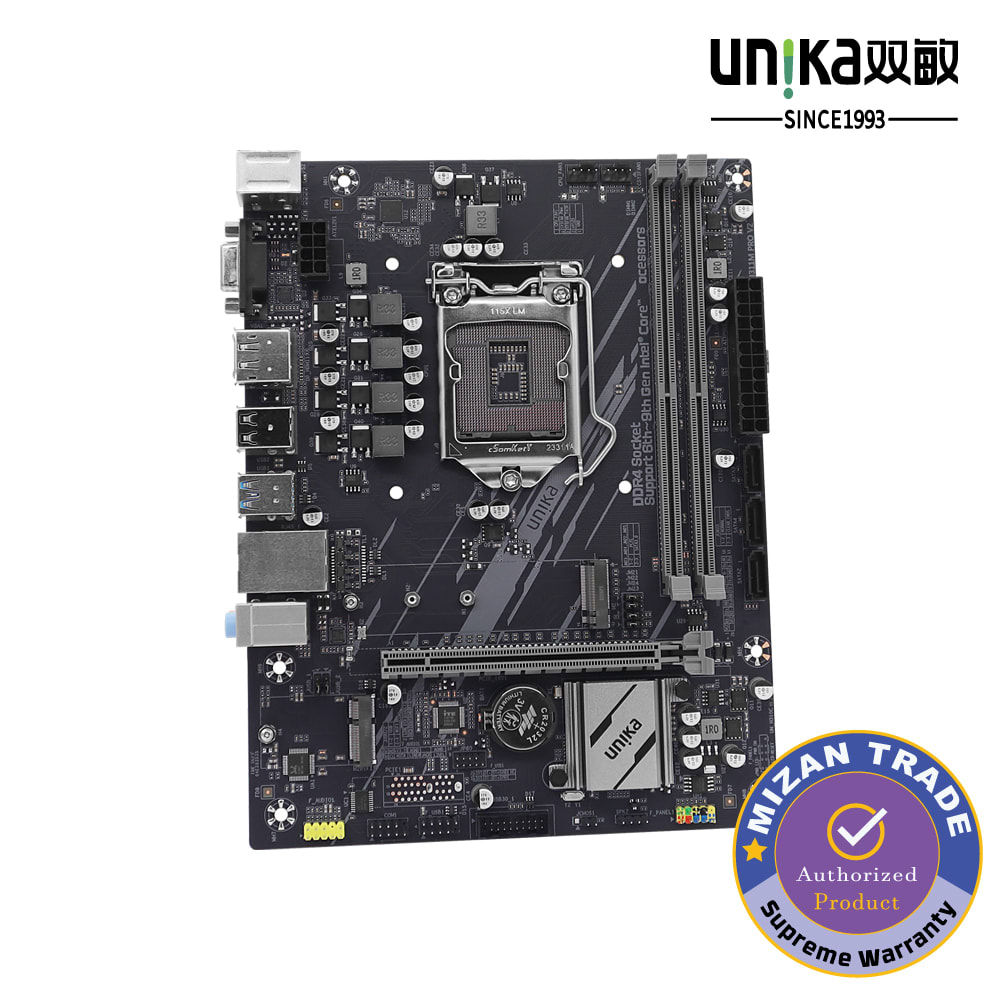

UNIKA UN-H311M PRO V2 SNIPER DDR4 6th to 9th Gen Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-H311M PRO V2 SNIPER
- Chipset: Intel H110 Chipset
- Platform: Intel Platform
- Form Factor: Micro ATX
- CPU Socket Type: LGA 1511
Overview & Performance
The UNIKA Intel H110 Motherboard is a compact Micro-ATX solution built to support Intel 6th, 7th, 8th, and 9th Generation Core i3, i5, i7, Pentium, and Celeron processors (LGA1151 socket)
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-H311M PRO V2 SNIPER |
| Platform | Intel Platform |
| Form Factor | Micro-ATX |
| Chipset | Intel H110 Chipset |
| CPU Socket & Support | LGA1151 (Supports Intel 6th / 7th / 8th / 9th Gen Core i3, i5, i7, Pentium, and Celeron Processors) |
| Memory Support: | |
| Memory Slots | Dual-Channel Memory Architecture |
| Total RAM Slots | 2 × DDR4 Memory Slots |
| Maximum Capacity | Up to 32 GB |
| Supported Memory Speeds | DDR4 3000 / 2933 / 2800 / 2666 MHz |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 Slot (Supports 2242 / 2260 / 2280 type storage devices) |
| SATA Ports | 3 × SATA 3.0 (6Gb/s) Ports |
| Expansion Slots & Connectivity: | |
PCI-E Slots | 1 × PCI-Express x16 Graphics Card Slot |
| 1 × PCI-Express x1 Slot | |
| LAN Controller | Onboard Realtek 8111H Gigabit Network Card |
| Wireless Expansion | 1 × M.2 Wi-Fi Interface |
| Audio Codec | Onboard Realtek ALC897 High-Fidelity Audio Independent Sound Card |
| Connectivity & I/O Ports | |
| Video Outputs | 1 × HDMI Port, 1 × DisplayPort, 1 × VGA Port |
| Rear USB Ports | 2 × USB 3.0 Ports, 3 × USB 2.0 Ports |
Internal Front Headers | 1 × USB 3.0 Header (Expandable to 2 × USB 3.0 ports) |
| 1 × USB 2.0 Header (Expandable to 2 × USB 2.0 ports) | |
| Legacy Ports | 1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port |
| Network & Audio Ports | 1 × RJ45 Network Port |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Power Connector + 8-pin CPU 12V Power Connector |
| Recommended Power Supply Unit (PSU) | It is recommended to use a standard 350W to 450W desktop power supply, depending on your environment. |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
Multi-Gen LGA1151 Compatibility: Supports 6th through 9th Gen Intel Core i3/i5/i7 processors for flexible CPU options
Triple Display Connectivity: Built-in HDMI, DisplayPort, and VGA outputs allow easy multi-monitor setups without requiring a discrete graphics card
Dual M.2 Interface Support: Features a high-speed M.2 SSD slot for fast OS boots alongside a dedicated M.2 Wi-Fi slot for adding wireless connectivity
Expandable Dual-Channel DDR4: Supports up to 32GB DDR4 RAM to deliver high-bandwidth multitasking and smooth performance
