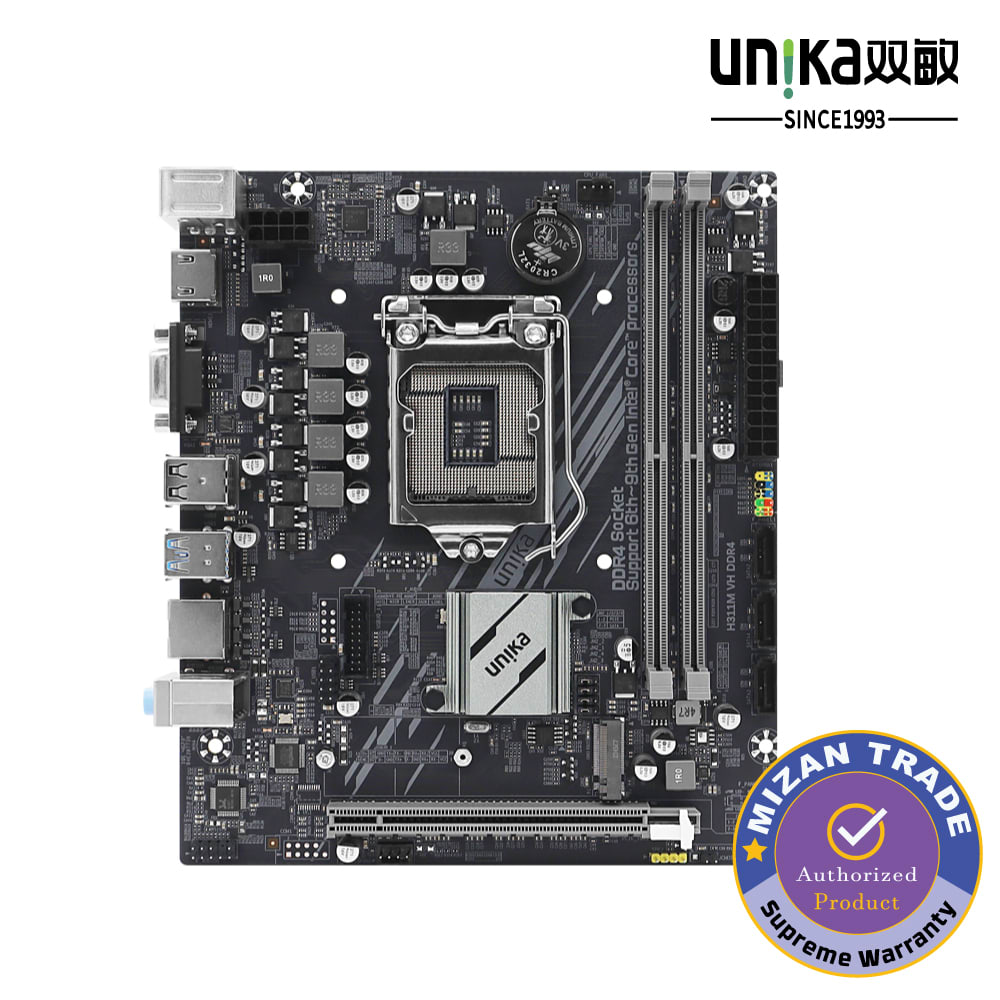

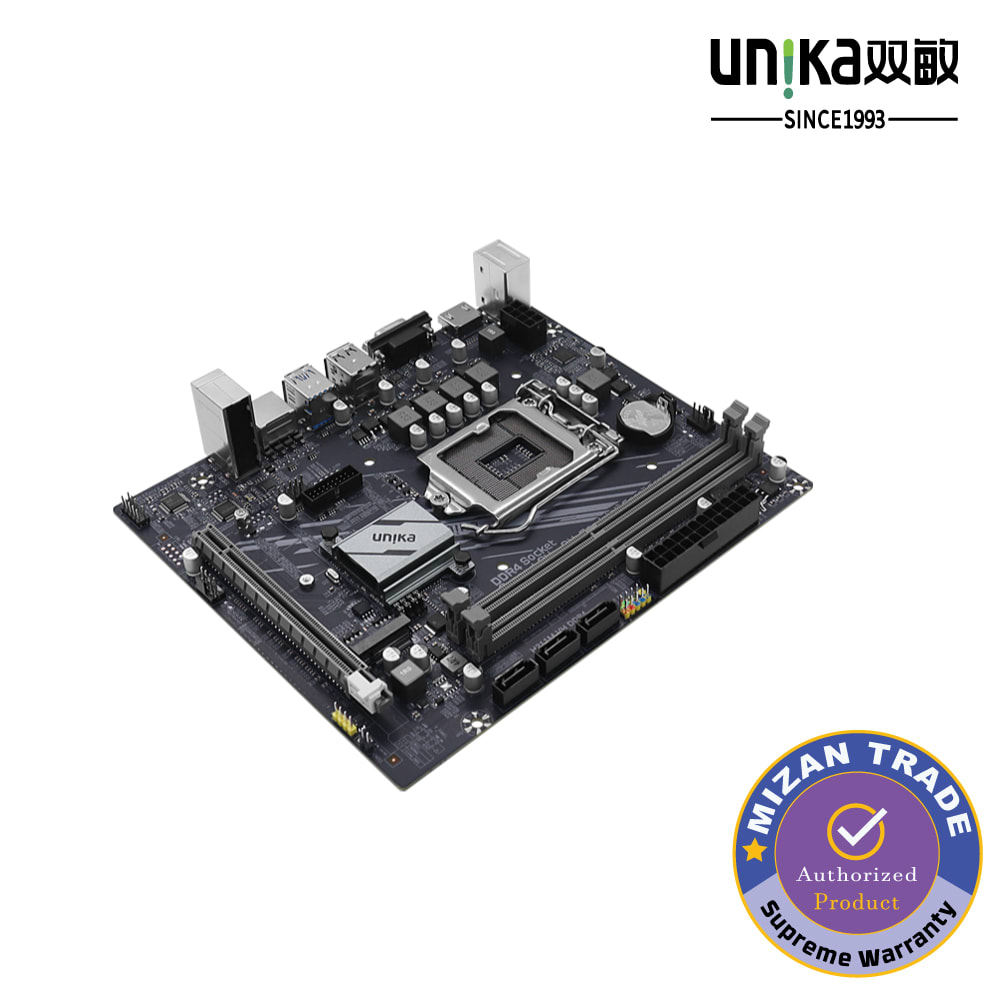

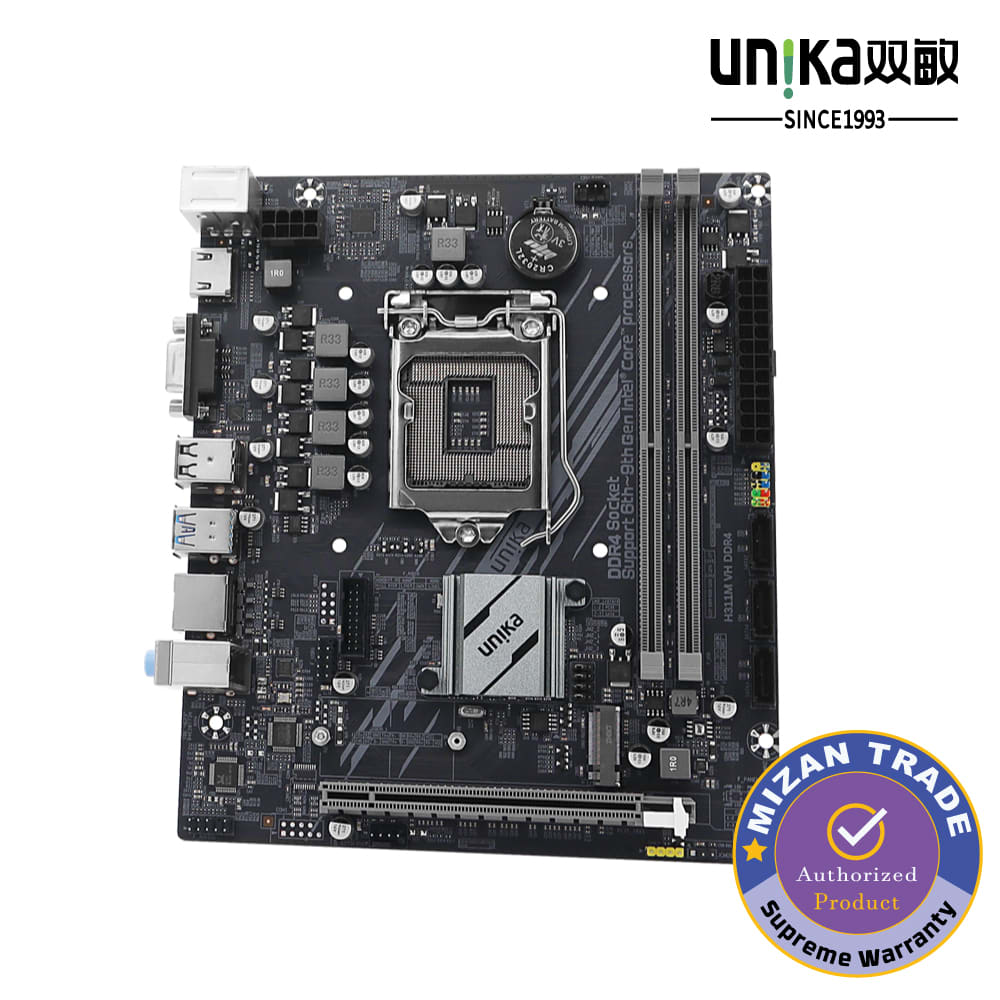

UNIKA UN-H311M VH DDR4 SNIPER 6th to 9th Gen Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-H311M VH DDR4 SNIPER
- Chipset: Intel H311 Chipset
- Platform: Intel Platform
- Form Factor: Micro ATX
- CPU Socket Type: LGA 1511
Overview & Performance
The UNIKA H311M PRO V2 is a versatile Micro-ATX motherboard designed to support 6th, 7th, 8th, and 9th Generation Intel Core i3, i5, i7, Pentium, and Celeron processors (LGA1151 socket)
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-H311M VH DDR4 SNIPER |
| Platform | Intel Platform |
| Form Factor | Micro-ATX |
| Chipset | Intel H311 Chipset |
| CPU Socket & Support | LGA1151 (Supports Intel 6th / 7th / 8th / 9th Gen Core i3, i5, i7, Pentium, and Celeron Processors) |
| Power Phase Design | 5-Phase Reinforced Power Delivery with RT3609BE PWM Chip & Low-Temp MOSFETs |
| Memory Support: | |
| Memory Slots | Dual-Channel DDR4 |
| Total RAM Slots | 2 × DDR4 Memory Slots |
| Maximum Capacity | Up to 32 GB |
| Supported Memory Speeds | DDR4 3000 / 2933 / 2800 / 2666 MHz |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 Slot (Supports 2242 / 2260 / 2280 type storage devices) |
| SATA Ports | 3 × SATA 3.0 (6Gb/s) Ports |
| Expansion Slots & Connectivity: | |
PCI-E Slots | 1 × PCI-Express x16 Graphics Card Slot |
| 1 × PCI-Express x1 Slot | |
| Network (LAN) | Onboard Realtek 8111H Gigabit Network Card |
| Wireless Expansion | 1 × M.2 Wi-Fi Interface |
| Audio Codec | Onboard Realtek ALC897 High-Fidelity Dedicated Sound Card |
| Connectivity & I/O Ports | |

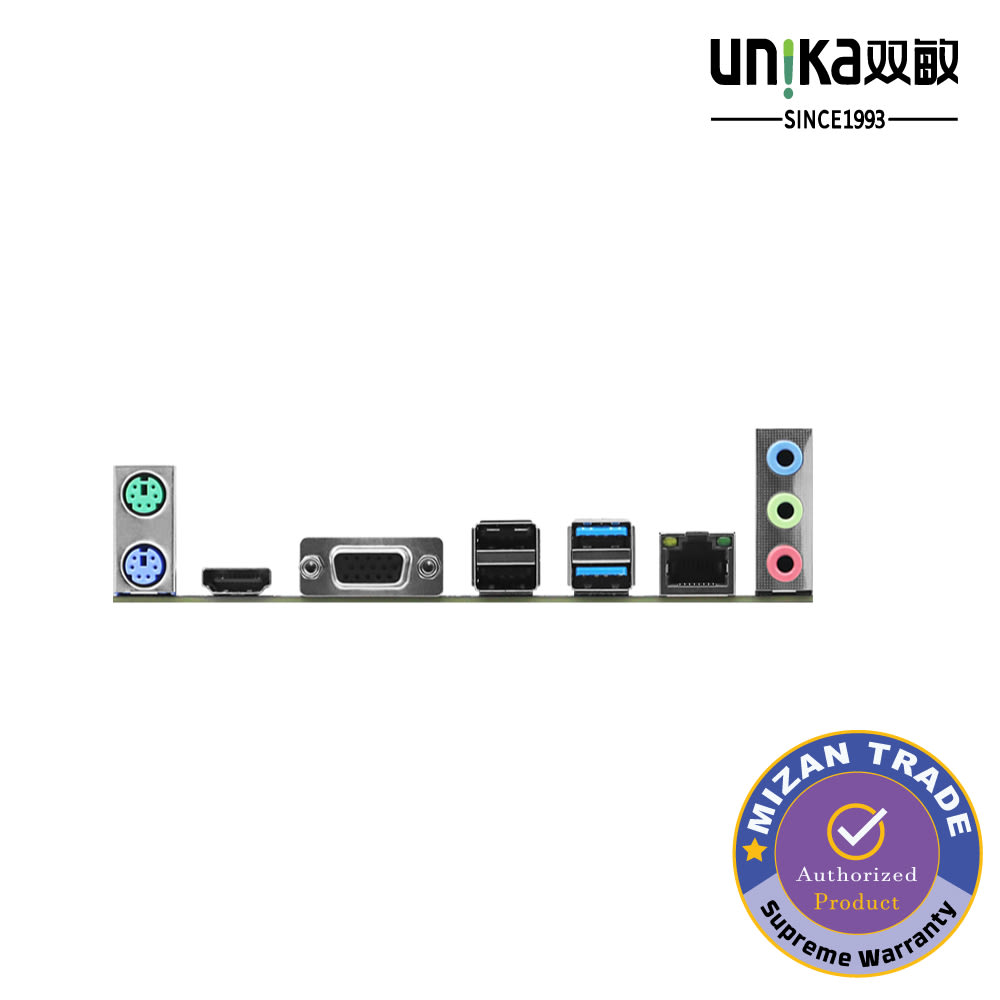

| Video Outputs | 1 × HDMI Port, 1 × VGA Port |
| Rear USB Ports | 2 × USB 3.0 Ports, 2 × USB 2.0 Ports |
| Internal Front Headers | 1 × USB 2.0 Header (expandable to 2 × USB 2.0 ports) |
| Legacy Ports | 1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port |
| Network & Audio Ports | 1 × RJ45 Network Port |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Power Connector + 8-pin CPU 12V Power Connector |
| Recommended Power Supply Unit (PSU) | It is recommended to use a standard 350W to 450W desktop power supply, depending on your environment. |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
Broad 6th-9th Gen Intel Support: Compatible across multiple generations of Intel LGA1151 processors, providing great versatility for upgrades
Dual-Channel DDR4 up to 32GB: Fast DDR4 memory support (up to 3000MHz) ensures quick loading times and seamless multitasking
Integrated M.2 SSD & Wi-Fi Slots: Built-in M.2 slot handles high-speed storage for quick OS booting, while the dedicated M.2 Wi-Fi port enables easy wireless card expansion
Reinforced 5-Phase VRM: RT3609BE PWM controller paired with low-temperature MOSFETs delivers efficient thermal management and steady power delivery under CPU load
