UNIKA UN-H61M PRO SNIPER DDR3 2nd/3rd Gen Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-H61M PRO SNIPER
- CPU Socket Type: LGA 1155
- Chipset: Intel H61 Chipset
- Platform: Intel Platform
- Form Factor: Micro ATX
Overview & Performance

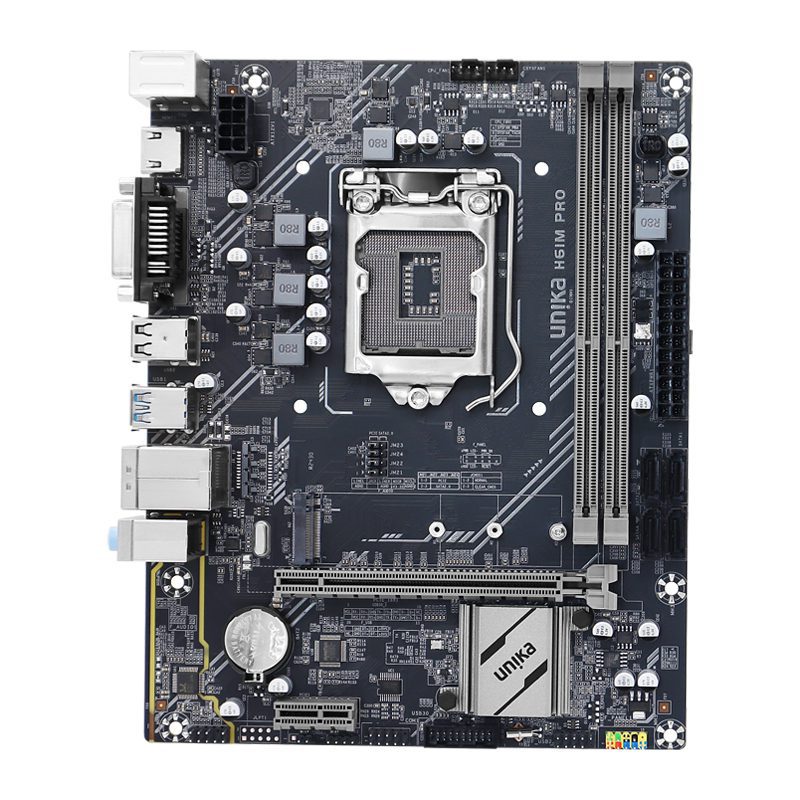

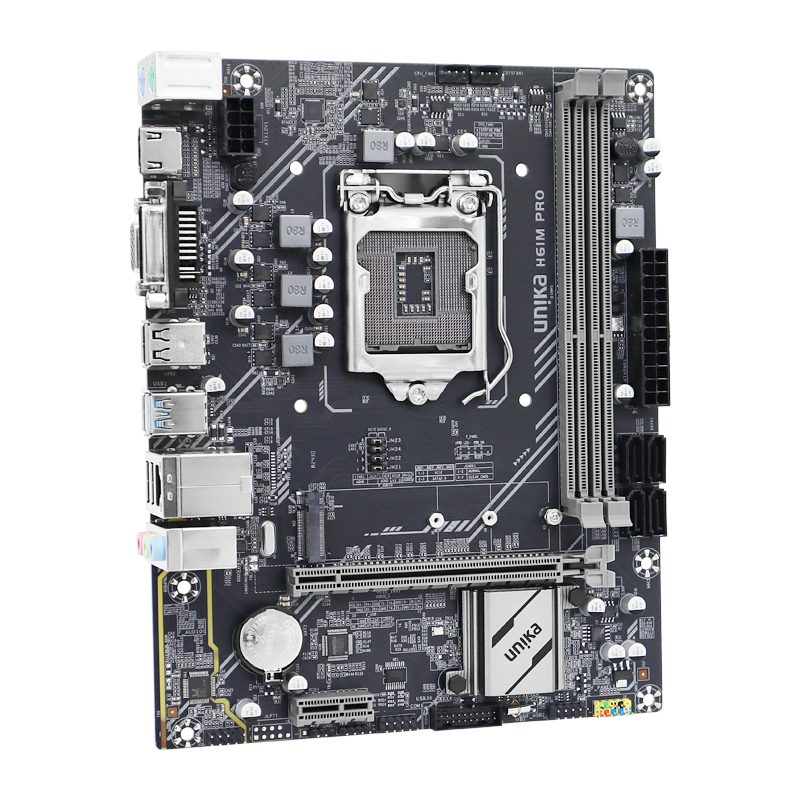

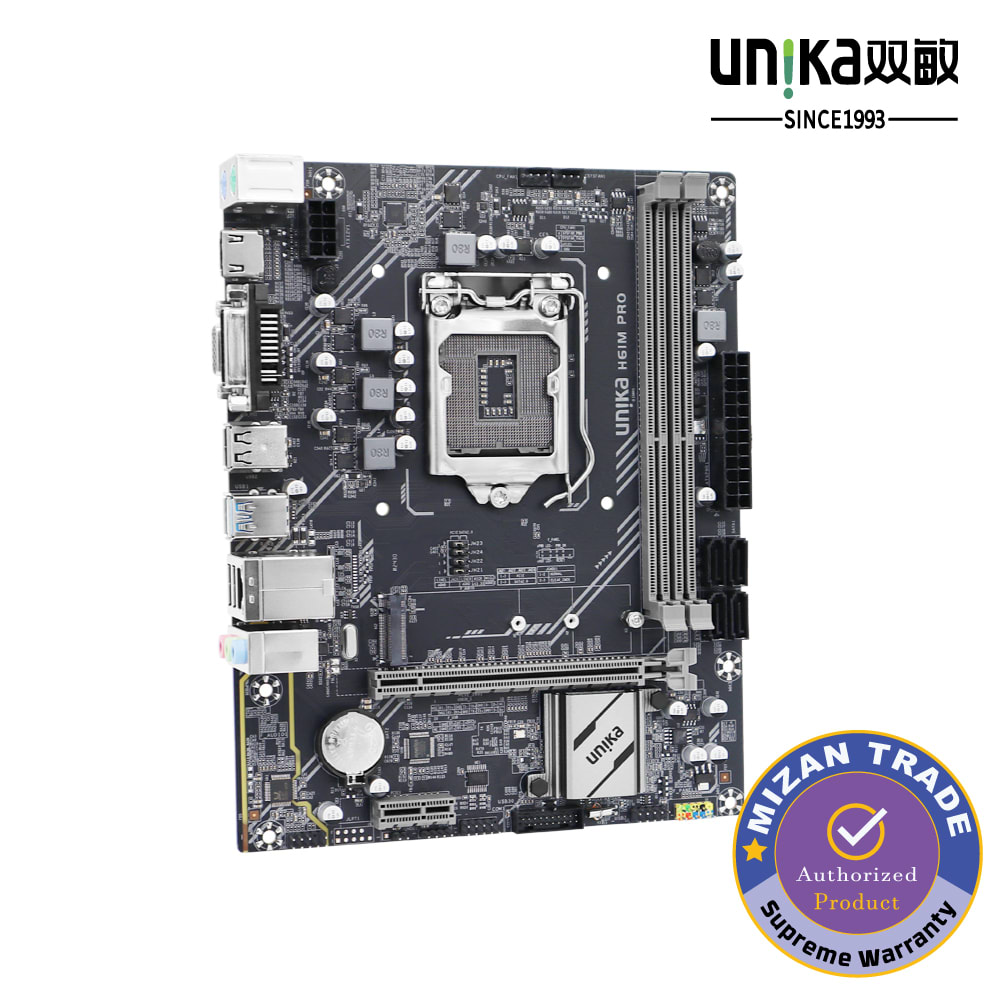

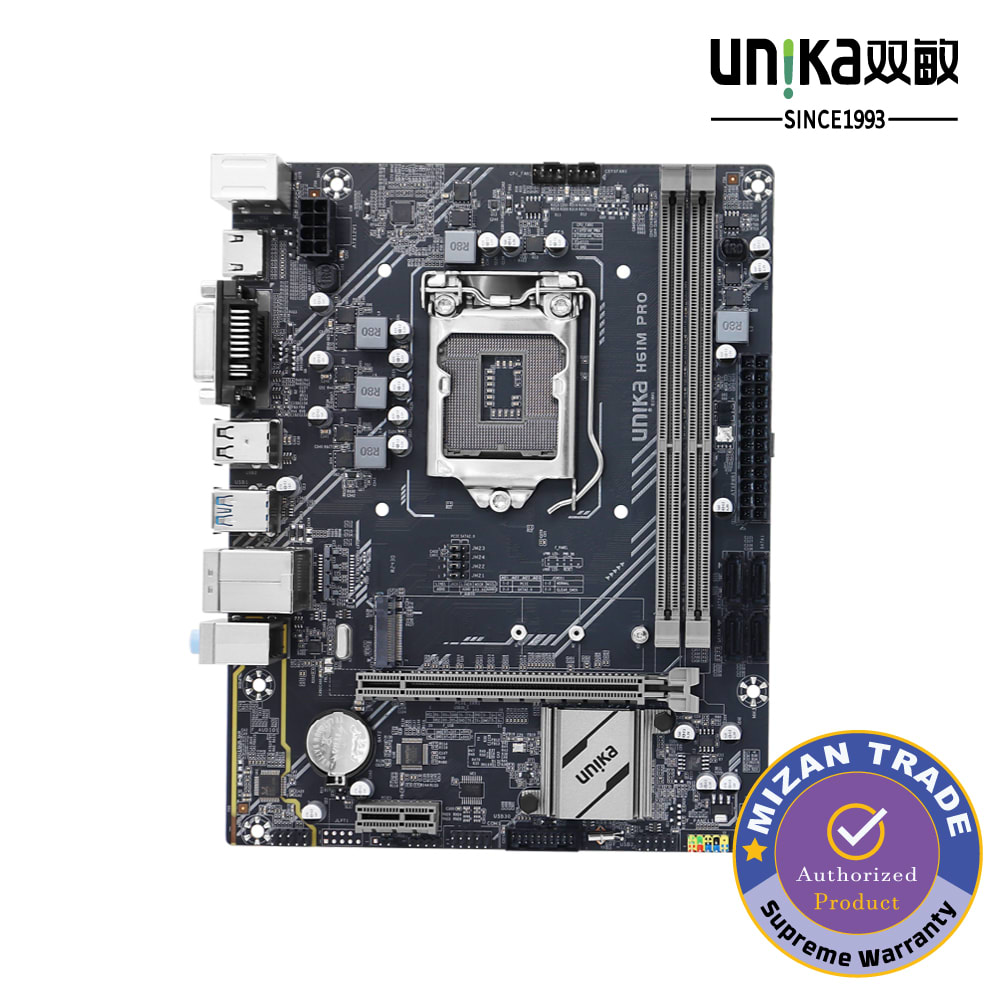

The UNIKA UN-H61M PRO is a budget-friendly Micro-ATX motherboard designed for Intel 2nd and 3rd Generation Core i7 / i5 / i3, Pentium, and Celeron processors utilizing the LGA1155 socket
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-H61M PRO |
| Platform | Intel Platform |
| Form Factor | Micro-ATX (170 mm × 220 mm) |
| Chipset | Intel H61 Chipset |
| CPU Socket | Intel LGA1155 |
| Supported Processors | Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (LGA1155 Socket) |
| Memory Support: | |
| Memory Slots | 2 × DDR3 DIMM Slots |
| Supported Memory | DDR3 1600 / 1333 / 1066 MHz |
| Maximum Capacity | Supports up to 16GB (2 × 8GB) |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 Slot (Supports 2242 / 2260 / 2280 type storage devices, NVMe & SATA protocol support) |
| SATA Ports | 4 × SATA 3.0 (6Gb/s) Ports |
| Expansion Slots & Connectivity: | |
PCI-E Slots | 1 × PCI-Express 2.0 x16 Graphics Card Slot |
| 1 × PCI-Express x1 Slot | |
| Network (LAN) | Onboard Realtek 1Gb Gigabit Network Controller |
| Audio Codec | Onboard Realtek ALC897 High-Fidelity Audio Independent Sound Card |
| Connectivity & I/O Ports | |
| Video Outputs | 1 × HDMI Port, 1 × DisplayPort, 1 × VGA Port |
| Rear USB Ports | 2 × USB 3.0 Ports, 4 × USB 2.0 Ports |
| Internal Front Headers | 1 × USB 3.0 Header (expandable to 2 more USB 3.0 ports), 1 × USB 2.0 Header (expandable to 2 more USB 2.0 ports) |
| Legacy Ports | 1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port |
| Network & Audio Ports | 1 × RJ45 Network Port |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Power Connector + 8-pin CPU 12V Power Connector |
| Recommended Power Supply Unit (PSU) | It is recommended to use a standard 350W to 450W desktop power supply, depending on your environment. |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
LGA1155 Platform Support: Engineered to accommodate Intel 2nd and 3rd Gen Core processors
Modern M.2 SSD Integration: Features a built-in M.2 slot supporting both NVMe and SATA storage modules
Versatile Display Connectivity: Equipped with a triple-output configuration (HDMI, DisplayPort, and VGA)
Gigabit Networking & HD Audio: Integrated Realtek Gigabit LAN and ALC897 audio chipset
