UNIKA UN-H81M PRO M.2 V1.0 SNIPER DDR3 4th Gen Micro ATX Motherboard
Special Price
Quick Overview
- Model: UN-H81M PRO M.2 V1.0 SNIPER
- Chipset: Intel H81 Chipset
- Platform: Intel Platform
- Form Factor: Micro ATX
- CPU Socket Type: LGA 1150
Overview & Performance

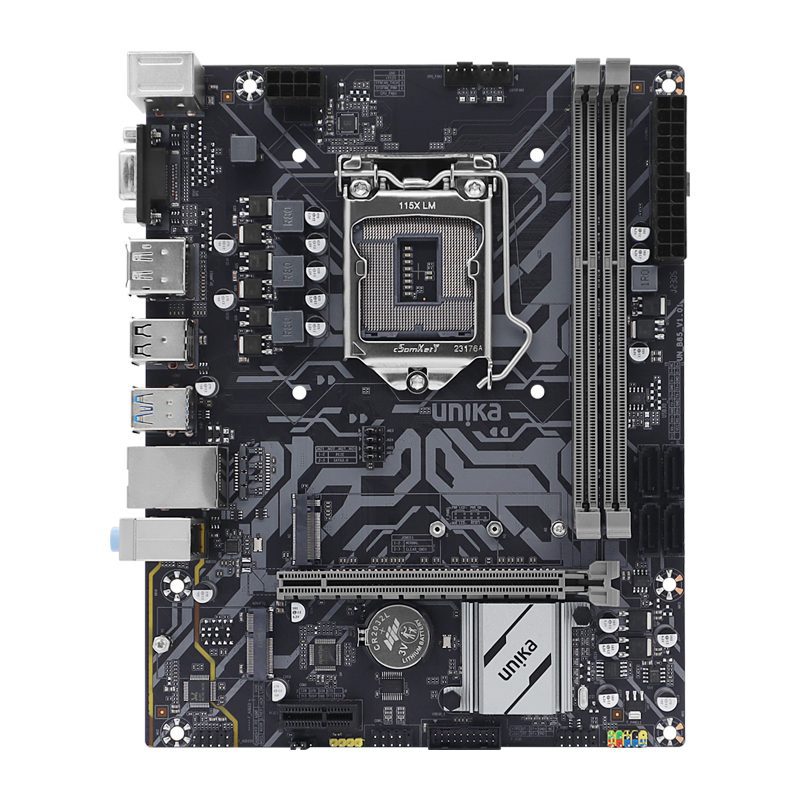

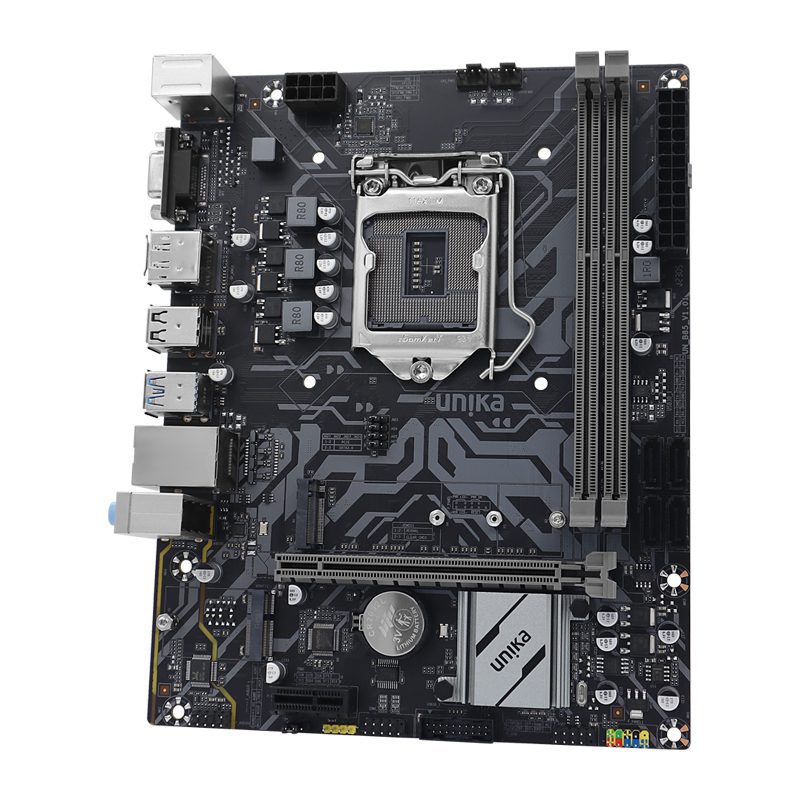

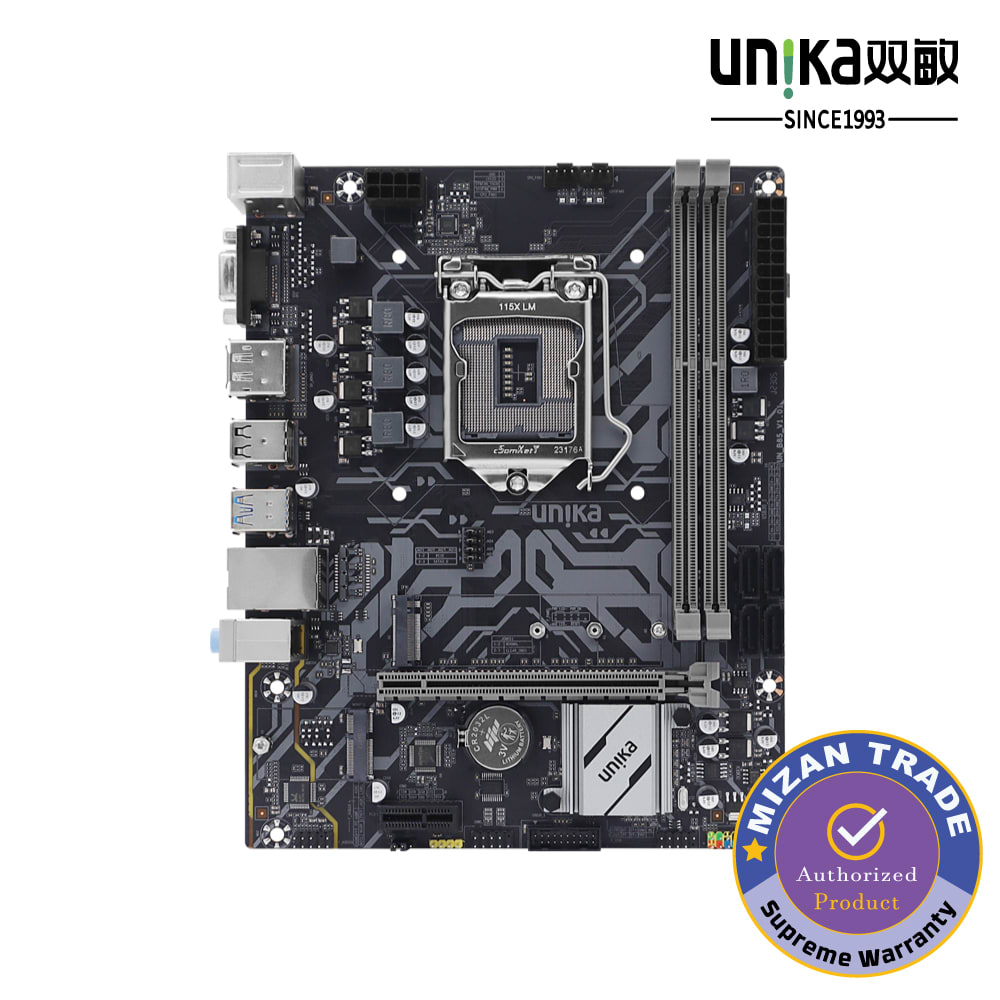

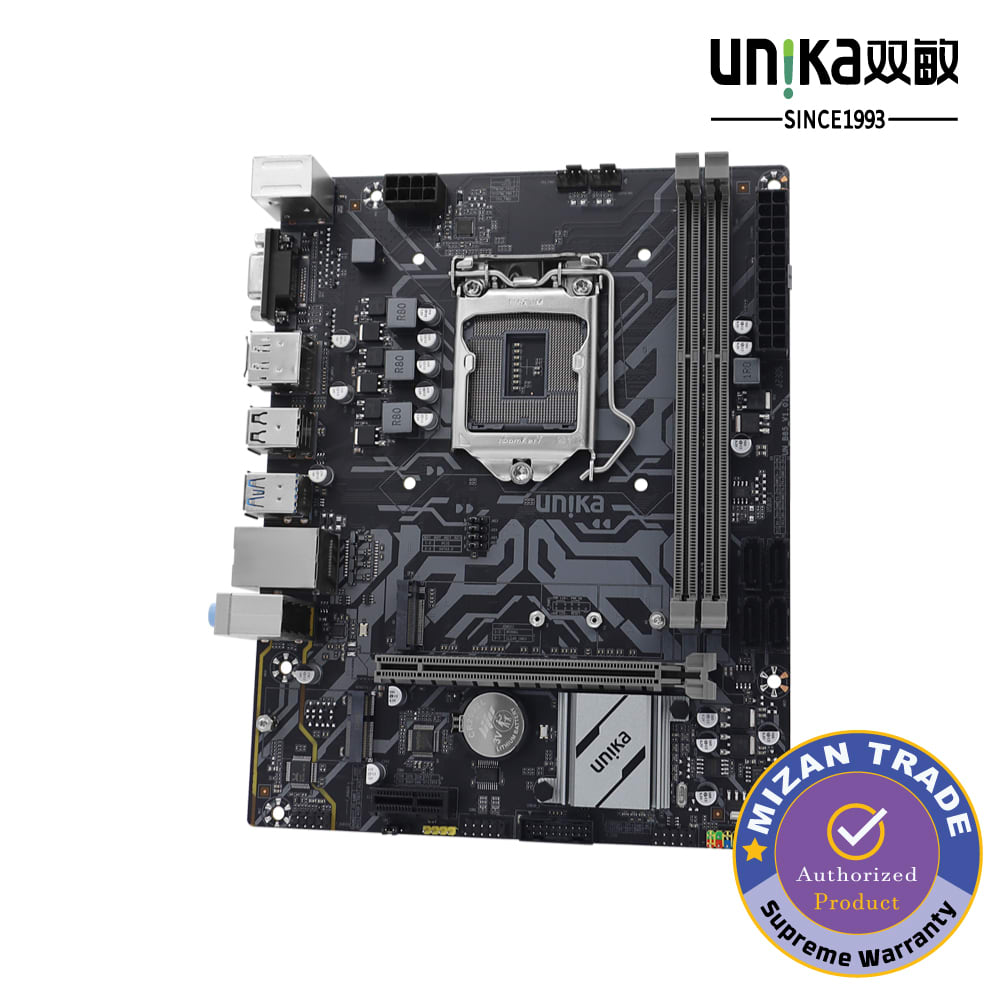

The UNIKA UN-H81M Pro M.2 V1.0 Sniper is an upgraded Micro-ATX motherboard engineered for Intel 4th Generation Core i7/i5/i3, Pentium, and Celeron processors (LGA1150 socket)
| Board Architecture & Core Chipset: | |
| Brand & Model | UNIKA UN-H81M Pro M.2 V1.0 Sniper |
| Platform | Intel Platform |
| Form Factor | Micro-ATX (170 mm × 220 mm) |
| Chipset | Intel H81 Chipset |
| CPU Socket | Intel LGA1150 (Supports Intel 4th Gen 22nm Processors) |
| Supported Processors | Intel Core i7 / i5 / i3 / Pentium / Celeron (LGA1150 Socket, 22nm support) |
| Memory Support: | |
| Memory Slots | 2 × DDR3 DIMM Slots |
| Supported Memory | DDR3 1600 / 1333 / 1066 MHz |
| Maximum Capacity | Supports up to 16GB (2 × 8GB) |
| Storage Interfaces: | |
| M.2 Slot | 1 × M.2 Slot (Supports 2242 / 2260 / 2280 NVMe/SATA protocol SSDs) |
| SATA Ports | 4 × SATA 3.0 (6Gb/s) Ports |
| Expansion Slots & Connectivity: | |
PCI-E Slots | 1 × PCI-Express x16 Graphics Card Slot |
| 1 × PCI-Express x1 Slot | |
| Wi-Fi Expansion | 1 × M.2 Wi-Fi Interface |
| Network (LAN) | Onboard Realtek 8111H Gigabit Ethernet Controller |
| Audio Codec | Onboard Realtek ALC897 High-Fidelity Audio Dedicated Sound Card |
| Connectivity & I/O Ports | |

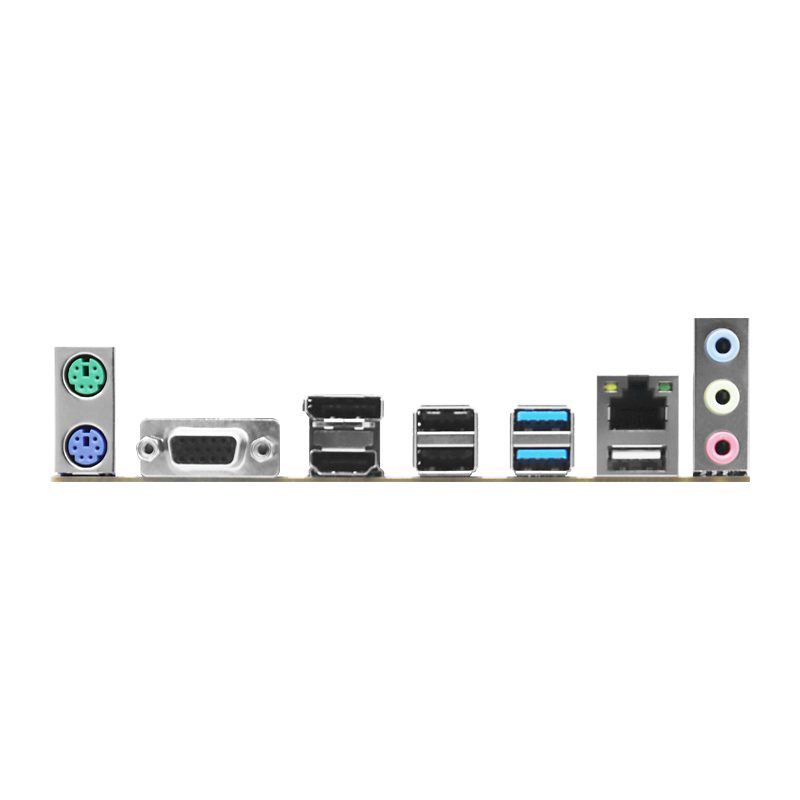

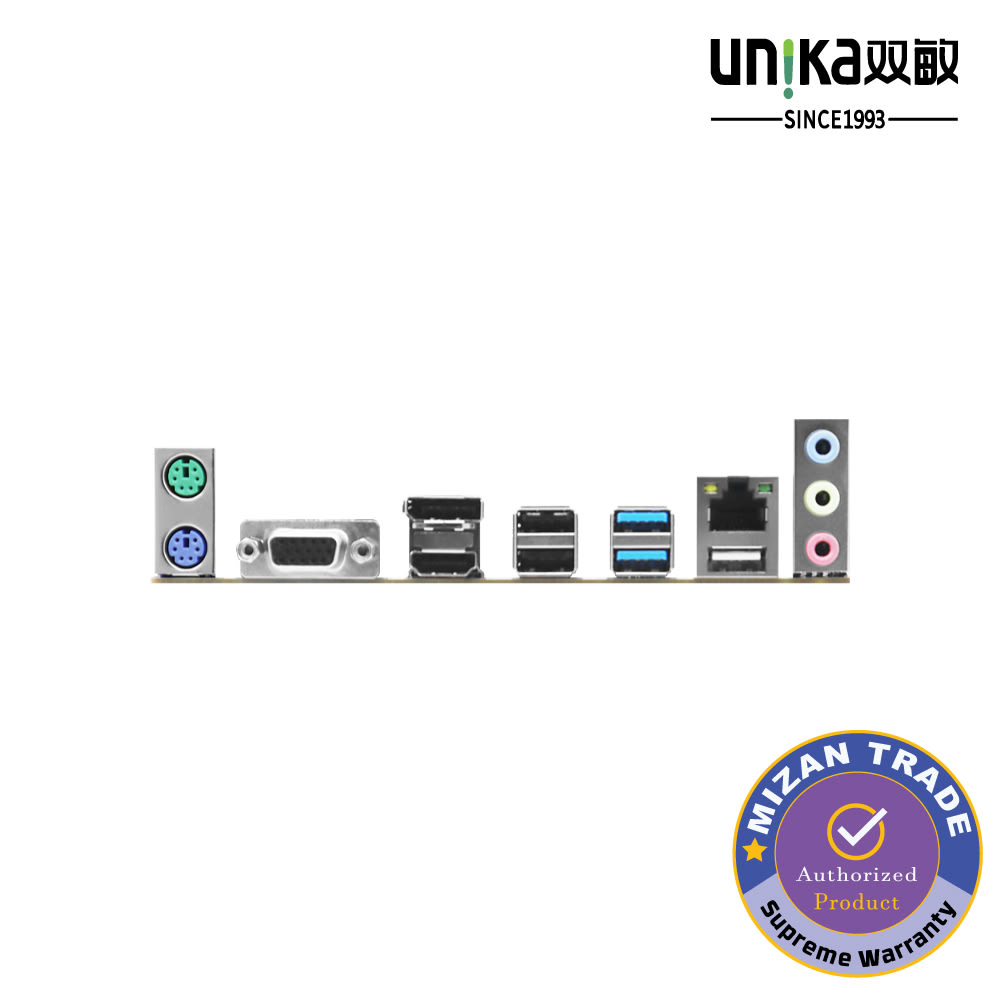

| Video Outputs | 1 × DisplayPort, 1 × HDMI, 1 × VGA |
| Rear USB Ports | 2 × USB 3.0 Ports, 4 × USB 2.0 Ports |
| Internal Front Headers | 1 × USB 3.0 Header (expandable to 2 × USB 3.0), 1 × USB 2.0 Header |
| Legacy Ports | 1 × PS/2 Keyboard Port, 1 × PS/2 Mouse Port |
| Fan Headers | 1 × CPU Fan Header, 1 × System Fan Header |
| Audio Jacks | 3 × 3.5mm Audio Jacks |
| Power Specifications: | |
| Power Connectors | 24-pin Main ATX Power Connector + 8-pin CPU 12V Power Connector |
| Recommended Power Supply Unit (PSU) | A standard 350W to 450W desktop power supply is recommended, depending on whether you are using integrated graphics or adding a dedicated graphics card (such as a GTX 1660 Super or RX 580). |
| Warranty & Reliability | |
| Origin | China |
| Warranty | 3-Years Supreme Warranty |
Key Highlights
Triple Display Flexibility: Outfitted with DisplayPort, HDMI, and VGA outputs, allowing multi-monitor setups across both modern and legacy displays
Enhanced CPU Power Delivery: Features an 8-pin CPU power connector (upgraded from standard 4-pin) alongside the 24-pin ATX connector for steady power delivery under load
High-Speed Storage & M.2 Wi-Fi: Includes a flexible M.2 SSD slot (NVMe/SATA supported) for quick boot drives and a dedicated M.2 slot for wireless Wi-Fi modules
Rich I/O & Legacy Support: Provides USB 3.0 front and rear connectivity, PS/2 ports for legacy peripherals, and Gigabit LAN for fast networking
